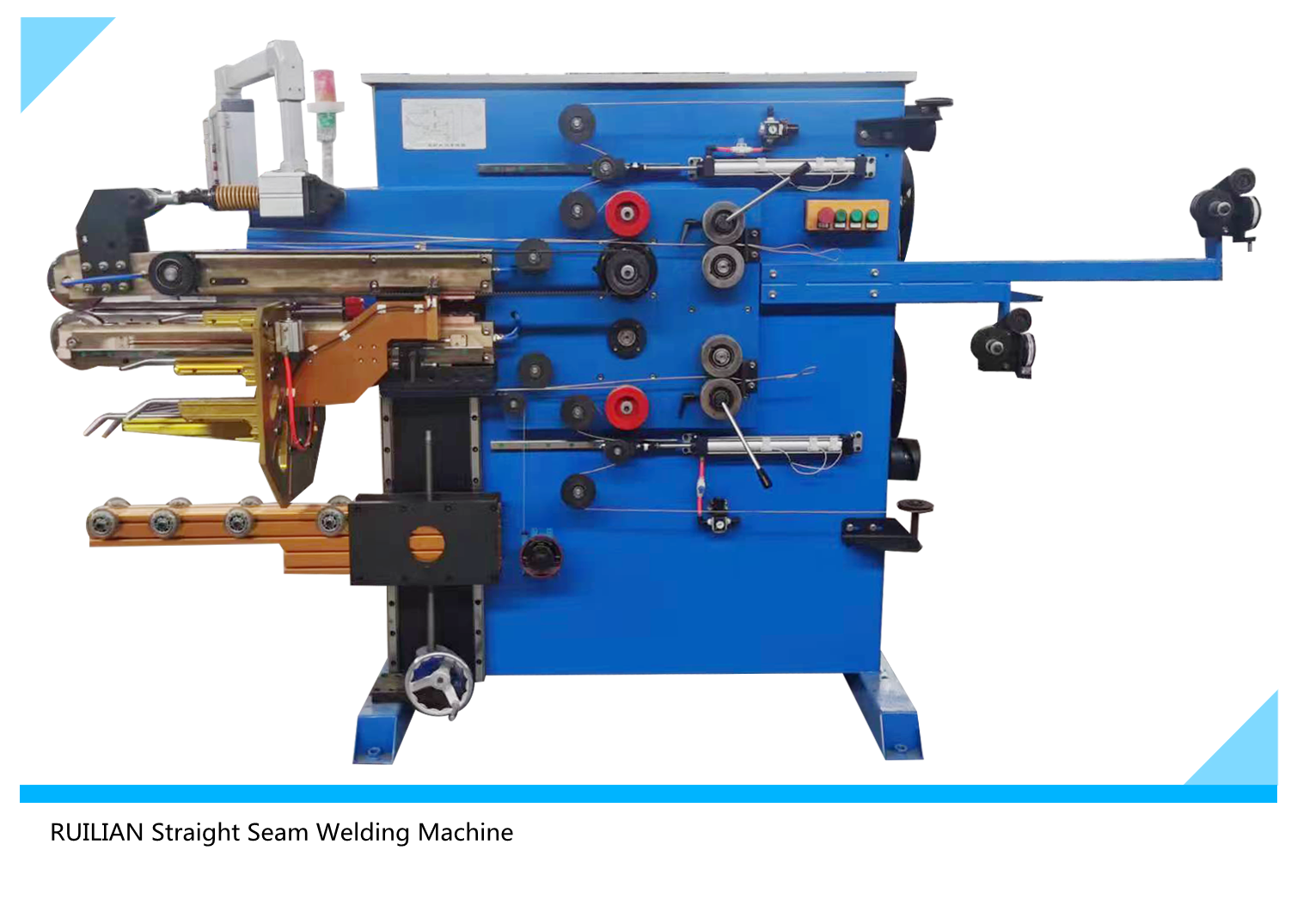

Resistance Semi Automatic Longitudinal Seam Welding Machine 1.5T
Resistance Semi Automatic Longitudinal Seam Welding Machine 1.5T
Specifications
Brand Name :
RUILIAN
Model Number :
RF-100S
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø200~Ø400mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
3~6mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Straight Seam Welding Machine Semi automatic longitudinal seam welding machine for steel drum

Welding diameter Ø200~Ø400mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap 3~6mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 1.5T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

RF-100S steel drum semi-automatic straight seam welding machine is a miniaturized professional welding machine specially suitable for steel drum welding. The auxiliary welding bracket can support the welding workpiece in the 3-dimensional direction, so that the steel with high welding difficulty can be supported. Welding assistance with barrels or similar products can provide effective assistance in welding efficiency, welding yield and welding difficulty. RF-100S steel drum semi-automatic straight seam welding machine has added easy disassembly function on the auxiliary welding bracket,It can not only weld small-sized steel drums, but also weld small-diameter circular ventilation ducts after the bracket is removed. Thereby increasing the scope of application of RF-100S, making it highlight this advantage in terms of miniaturization to the greatest extent, and it is possible to weld the air duct on the construction site.

Resistance Semi Automatic Longitudinal Seam Welding Machine 1.5T
