Longitudinal Seam Welding Machine Cooling Water Flow 0.4Mpa 8.5L/Min
Longitudinal Seam Welding Machine Cooling Water Flow 0.4Mpa 8.5L/Min
Specifications
Brand Name :
RUILIAN
Model Number :
RU-300
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø300~Ø600mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
3~6mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum

Welding diameter Ø300~Ø600mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap 3~6mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 2T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

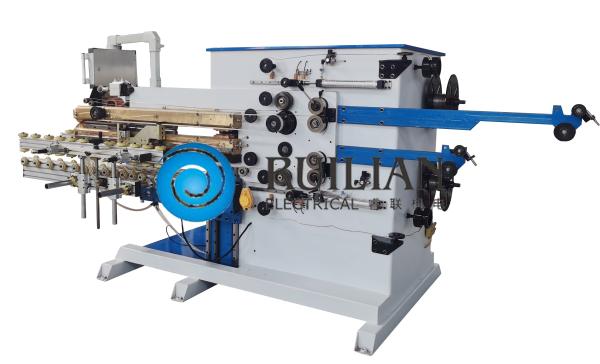

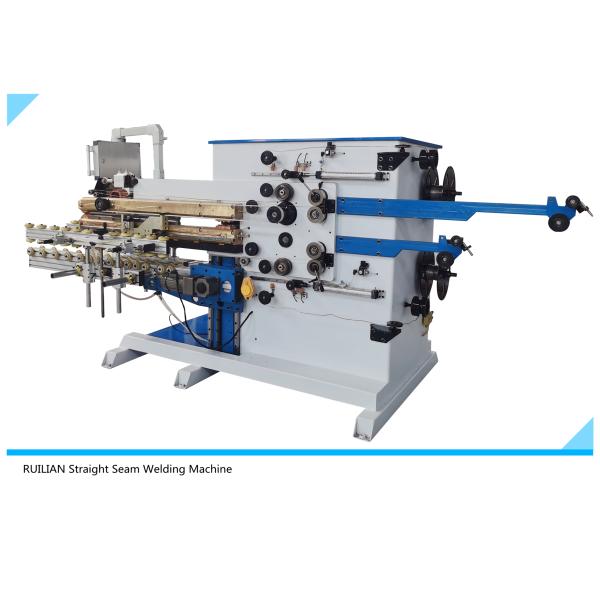

RU-300 air duct straight seam welding machine is the basic model of RU series. It is developed by Ruilian on the basis of the original RF series welding machine for industrial air ducts and thick-walled steel drums and other large-diameter products with thicker thickness. Straight seam welding machine, it not only has the 3D electric adjustable welding auxiliary protective gear of RF-100B model, but also increases the load-bearing capacity on the basis of it. The RU-300 air duct straight seam welding machine runs under continuous operation more stable,Operation is easier and simpler. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
