BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
Specifications
Brand Name :
FRANK STEEL
Model Number :
BFe10-1-1
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Steel grade :
BFe10-1-1
Application :
sea water heater
Type :
Seamless,round
Standard :
GB/T5231-2001
Thickness :
0.5～2.5mm
Outer diameter :
6～35mm
Length :
Negotiation ≤12M
Package :
Plywood wooden box for export
Description

BFe10-1-1 Corrosion Resistance Structural PaktongTube For Sea Water Heat Exchanger

1. Description

BFe10-1-1 is a kind of structural iron white copper with less nickel. The addition of Fe and Mn in BFe10-1-1 alloy greatly improves the corrosion resistance of this material.

In clean seawater, the flow rate of the alloy can reach 2.2-2.5% / s. The highest acceptable speed in micro salt liquid is 4 m / s. The alloy can avoid stress corrosion cracking and nickel removal at high temperature. Therefore, the alloy has good corrosion resistance to clean or polluted seawater and river water. So, the tube is widely used in seawater heat exchangers in power plants, desalination plants, petrochemical plants, etc.

The company's brass/copper tube grades mainly include BFe10-1-1, HSn70-1, HSn70-1B, HSn70-1AB, HAl77-2, H68A copper tube, fin tube and U-tube. The products are produced in strict accordance with the standard, and the finished products can be tested by the third party according to the customer's requirements. These copper tubes are mainly used in power plants, desalination, petrochemical, mechanical ships and automotive heat exchangers. We have rich production experience, professional technology, excellent equipment, superior quality, reasonable price, high-quality service, so that our products sell well all over the world, well received by customers.

2. Chemical Composition

Grade Chemical Composition Impurity composition /%, ≤
Cu Sn As B Ni Mn Zn Fe Pb Al S
HSn70-1B 69.0～71.0 0.8～1.3 0.03～0.06 0.015～0.02 - - allowance 0.1 0.05 　 　 ≤0.3
HSn70-1AB 69.0～71.0 0.8～1.3 0.03～0.06 0.015～0.02 0.05～1.00 0.02～2.0 allowance 0.1 0.05 　 　 ≤0.3
HAI77-2 76～79 　 0.02～0.06 　 0.5 　 allowance 0.06 0.07 1.8～2.5 　 ——
T2 99.9 　 0.002 　 　 　 　 0.005 0.005 　 0.005 ——
BFe10-1-1 allowance 　 　 　 9～11 0.5～1.0 0.3 1.0～1.5 0.02 　 0.1 ≤0.7
BFe30-1-1 allowance 　 　 　 29～32 0.5～1.2 0.3 0.5～1.0 0.02 　 0.01 ≤0.7



3. Physical Properties

Grade Supply Status Specifications/mm Standard
OD Wall Thickness Length
BFe10-1-1 soft(M) 6～30 0.5～2.5 ≤6000 GB/T8890-2007
Semi hard(Y2)Hard(Y) 6～30 0.5～2.5 ≤12000 GB/T8890-2007
BFe30-1-1 soft(M)Semi hard(Y2) 6～30 0.5～2 ≤12000 GB/T8890-2007
HAl77-2;HSn70-1; soft(M)Semi hard(Y2) 6～30 0.5～2 ≤12000 GB/T8890-2007
HSn70-1B;
HSn70-1AB;
H68A;HSn70A;
BFe10-1-1 Semi hard(Y2) 9～12(20～35) 0.75～1.5 ≤2500 GB/T8890-2007
LF21Clad pipe

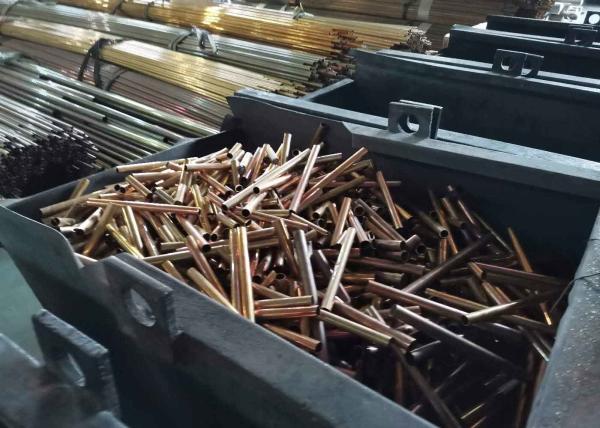

4. Details Picture

BFe10-1-1 Corrosion Resistance Structural Paktong Tube For Sea Water Heat Exchanger
