Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Self cleaning 200 PSI DNV 2˝ Industrial Metal Valves
Specifications
Brand Name :
FRANK STEEL
Model Number :
Classes: 200 psi
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
1pcs
Price :
USD negotiation per pcs
Payment Terms :
T/T
Supply Ability :
100 per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Material :
Carbon, stainless, Alloy, Nickel alloy steel
Sizes :
2˝∽48˝ ( 50mm∽1200mm )
Classes :
200 psi
Collor :
Customizable
charcteristic :
Center line butterfly
Packing :
Wooden box
date of delivery :
30days
Standard :
API609
Description

1. Description

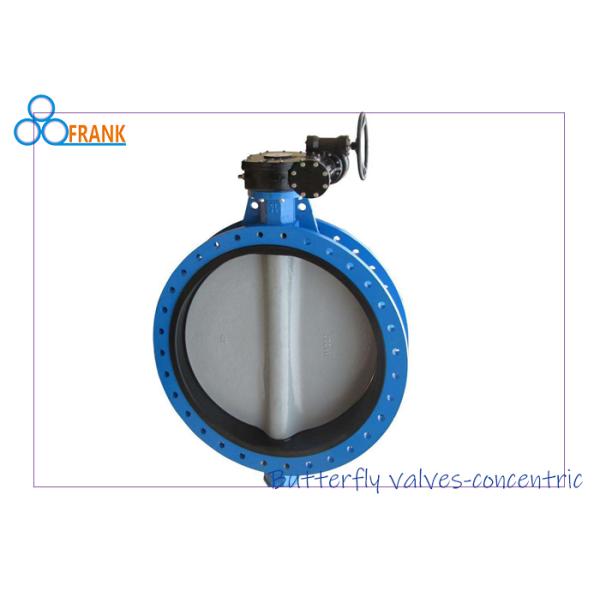

Center line butterfly valve
API609
Sizes: 2˝∽48˝ ( 50mm∽1200mm )
Classes: 200 psi
Material:Carbon, stainless, Alloy, Nickel alloy steel

2. Feature
Resilient seated
Tightly shut off
Bi-directional service
Self cleaning
Blow-out proof shaft
Double block and bleed
Available for low pressure fluid service

3. Product features and Application

The structure of the center line butterfly valve mainly includes valve body, butterfly plate, valve stem, valve seat and actuator. The shaft center of valve rod, center of butterfly plate and center of body are in the same position, so the structure is simple and the manufacture is convenient. The actuator mainly includes handle, turbine head, electric actuator, pneumatic head, etc. The valve body is made by integral casting process. The seat sealing ring is made of rubber and inlaid on the valve body. The shaft sleeve is designed in the two end shaft holes of the valve body to provide support and lubrication for the valve rod.

The operation of the center line butterfly valve is also very simple. Take the handle of the center line butterfly valve as an example, pull the handle to turn clockwise or anticlockwise, the handle drives the valve stem, and the stem drives the butterfly plate to rotate 90 ° to complete the opening and closing of the butterfly valve. The whole process is also very labor-saving.ent.The middle line butterfly valve is usually soft seal butterfly valve, which is suitable for low pressure and normal temperature environmSelf cleaning 200 PSI DNV 2˝ Industrial Metal Valves
