High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM A335 P91
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
2 Tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Standard :
ASTM A335 P91
Length :
Negotiation between 4-12M
Protection :
Plastic Caps on both ends
Marks :
As per customer's requirement
3rd party exam :
Supported
Front money :
30% of total amount
Shipping insurance :
Negotiation
Surface :
Painted, Oiled, Galvanized, Hosphate
Out Diameter :
cold-drawn 8mm-168.3mm, hot-rolled >168.3mm
Wall Thickness :
Negotiation
Bevelled :
Supported
Material :
ASTM A335 low Carbon Steel
Description

ASTM A335 P91 Ferritic Alloy Steel Pipe For High Temperature Service

1. Product Description

In strict accordance with ASTM A335 P91 standard is used for production and testing. The chemical composition and physical properties fully meet the requirements of the standard. This product is seamless alloy steel pipe for high temperature. All grades of steel in this standard are delivered in the state of complete annealing, isothermal annealing and normalizing plus tempering. The tempering temperature is different. The minimum tempering temperature of P1, P2, P11 and p12 is 650 ℃, and that of P5, P9, p21 and P22 is the lowest, which tempering temperature is 675 ℃.The product can be cold drawn or hot rolled, mainly used for boilers and steam pipes with mechanical properties and high temperature requirements. Outer diameter is 1 / 8in-48in (3.2mm-1219.2mm), normally cold-drawn 8mm-168.3mm, hot-rolled >168.3mm.

For antirust purpose, customer can request black painted, blue painted, and oil soaking.

For both sides protection, customer can request plastic caps.

For up-market needed, customer can request addition internal and external burr cleaning and beveling.

2. Industrial application

ASTM A335 P91 Seamless carbon steel pipes are widely used in high-temperature industries. This product is mainly used for header and steam pipe of low and medium pressure boiler (the working pressure is generally not more than 5.88MPA, and the working temperature is below 450 ℃).

3. Chemical composition

Standards Steel pipes No. Chemical composition(%)
　 　 C Si Mn P S Cr Mo Cu Ni V Al W Nb N
ASTM A335 SA335 P1 0.10～0.20 0.10～0.50 0.30～0.80 ≤0.025 ≤0.025 --- 0.44～0.65 　 　 　 　 　 　 　
SA335 P2 0.10～0.20 0.10～0.30 0.30～0.61 ≤0.025 ≤0.025 0.50～0.81 0.44～0.65 　 　 　 　 　 　 　
SA335 P5 ≤0.15 ≤0.50 0.30～0.60 ≤0.030 ≤0.030 4.00～6.00 0.45～0.65 　 　 　 　 　 　 　
SA335 P9 ≤0.15 0.50～1.0 0.30～0.60 ≤0.030 ≤0.030 8.00～10 0.90～1.10 　 　 　 　 　 　 　
SA335 P11 0.05～0.15 0.50～1.0 0.30～0.60 ≤0.030 ≤0.030 1.00～1.50 0.50～1.00 　 　 　 　 　 　 　
SA335 P12 0.05～0.15 ≤0.50 0.30～0.61 ≤0.030 ≤0.030 0.80～1.25 0.44～0.65 　 　 　 　 　 　 　
SA335 P22 0.05～0.15 ≤0.50 0.30～0.60 ≤0.030 ≤0.030 1.90～2.60 0.87～1.13 　 　 　 　 　 　 　
SA335 P91 0.08～0.12 0.20～0.50 0.30～0.60 ≤0.020 ≤0.010 8.00～9.50 0.85～1.05 　 ≤0.40 0.18～0.25 ≤0.015 　 0.06～0.10 0.03～0.07
SA335 P92 0.07～0.13 ≤0.50 0.30～0.60 ≤0.020 ≤0.010 8.50～9.50 0.30～0.60 - ≤0.40 0.15～0.25 ≤0.015 1.50～2.00 0.04～0.09 0.03～0.07


4. Physical properties

Standards Steel pipes No. Tensile strength(MPa) Bend strength(MPa) Elongation(％) Impact energy(J) Hardness
SA335 P1 ≥380 ≥205 ≥22 ≥35 ≤187HB
SA335 P2 ≥380 ≥205 ≥22 ≥35 ≤187HB
SA335 P5 ≥415 ≥205 ≥22 ≥35 ≤187HB
SA335 P9 ≥415 ≥205 ≥22 ≥35 ≤187HB
SA335 P11 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P12 ≥415 ≥220 ≥22 ≥35 ≤163HB
SA335 P22 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P91 585～760 ≥415 ≥20 ≥35 ≤250HB
SA335 P92 ≥620 ≥440 ≥20 ≥35 250HB

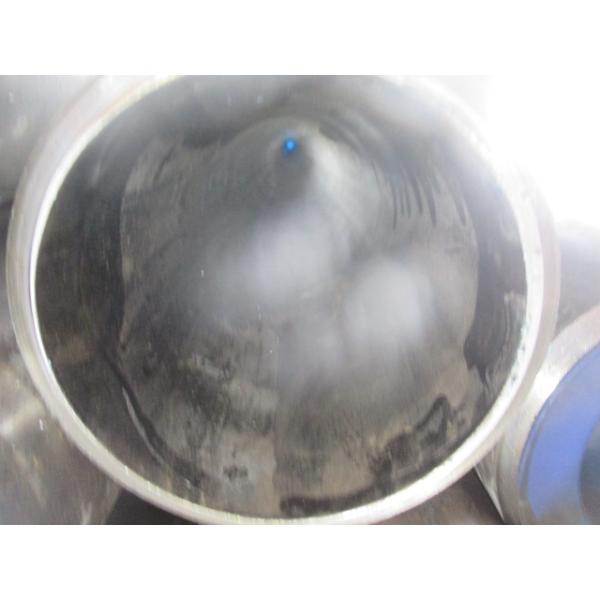

5. Details Picture

High Temperature ASTM A335 P91 Ferritic Alloy Steel Pipe
