Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Super Heaters ASTM A213 TP304H Stainless Steel Tubes
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM A213 TP304H
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
2 Tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Steel grade :
A213 TP304H
Application :
Industry,Fluid Pipe
Type :
Seamless,round
Standard :
ASTM A213 TP304H
Thickness :
1.0～6.0mm
Outer diameter :
10.0～88.9mm
Length :
Negotiation between 4-12M
Package :
Plywood wooden box for export
Description

ASTM A213 TP304H Stainless Steel Tubes For High-Temperature And High-Pressure Superheaters

1. Description

ASTM A213 TP304H stainless steel, with good bending and welding performance, corrosion resistance, high endurance strength and structural stability, cold deformation ability is very good. The use temperature can reach 650 ℃ and the oxidation resistance temperature can reach 850 ℃.

Application:

It is used to manufacture superheater tube, reheater tube, steam pipe and heat exchange pipe for petrochemical industry of large generator set. The allowable anti-oxidation temperature for boiler pipe is 705 ℃.

Both ends of stainless steel pipe can be matched with pipe cap. We provide suitable packaging methods. Various export packaging ensures the safe transportation of products. Our stainless steel seamless steel pipe product quality is excellent, the material meets the different needs of customers. The products sell well all over the world and win the praise and satisfaction of customers.

2. Chemical composition

Element List
America standard European standard C % max Mn % max P % max S % max Si % max Cr % Ni % Mo% Others
TP304 1.4301 0.080 2.0 0.045 0.03 1.00 18.00-20.00 8.00-11.00 - -
TP304L 1.4307 0.035 2.0 0.045 0.03 1.00 18.00-20.00 8.00-12.00 - -
TP304H / 0.04-0.10 2.0 0.045 0.03 1.00 18.00-20.00 8.00-11.00 - -



3. Physical Properties

Grade of steel
China(GB) China(GB) America
AISI(ASTM)		 JIS (Germany)
Old Grade New Grade (Japan) DIN17006 DIN17007
Stainless steel seamless pipe 0Cr18Ni9 TP304/ 06Cr19Ni10 304/S30400 SUS304 X5CrNi18-10
00Cr19Ni10 TP304L/ 022Cr19Ni10 304L/S30403 SUS304L X2CrNi19-11
0Cr25Ni20 TP310/ 06Cr25Ni20 310S/31008 SUS310S X12CrNi25-21
0Cr17Ni12Mo2 TP316/ 06Cr17Ni12Mo2 316/S31600 SUS316 X5CrNiMo17-12-2
00Cr17Ni14Mo2 TP316L/ 022Cr17Ni12Mo2 316L/S31603 SUS316L X2CrNiMo18-14-3
0Cr19Ni13Mo3 TP317/ 06Cr19Ni13Mo3 317/S31700 SUS317 X5CrNiMo11-13-3
00Cr19Ni13Mo3 TP317L/ 022Cr19Ni13Mo3 317L/S31703 SUS317L X2CrNiMo18-16-4
0Cr18Ni10Ti TP321/ 06Cr18Ni11Ti 321/S32100 SUS321 X6CrNiTi18-10
0Cr18Ni11Nb TP347/ 06Cr18Ni11Nb 347/S34700 SUS347 X12CrNiNb18-10

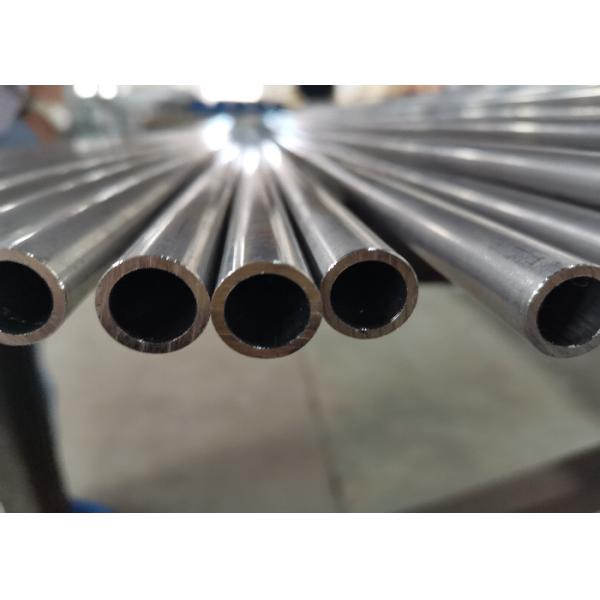

4. Details picture

Super Heaters ASTM A213 TP304H Stainless Steel Tubes
