Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Heat Exchanger ASTM C26100 Seamless Copper Tube
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM C26100
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
plywooden boxes for exporting
Impurity content :
≤0.15%
Softening temperature :
900～1050℃
Grade :
ASTM C26100
Length :
Negotiation ≤12M
3rd Party :
Supported BV SGS
Package :
Plywood wooden box for export
Description

ASTM C26100 Common Brass Seamless Tubes For Heat Exchanger And Mechanical Pipes
1. Description

ASTM C26100 seamless brass tube has good formability (the best brass) and high strength. It has good machinability and is easy to weld. It is very stable to general corrosion. C26100 seamless copper tube is suitable for heat exchanger, paper tube and electronic parts.

Brass is an alloy of copper and zinc. Ordinary brass is made of copper and zinc. Special brass is made up of more than two kinds of elements. Such as lead, tin, manganese, nickel, lead, iron, silicon copper alloy and so on. Brass has strong wear resistance, high hardness and high chemical corrosion resistance. The mechanical properties of cutting are also very good. The seamless brass tube drawn by brass is soft and wear-resistant. Brass seamless pipe is generally used in heat exchanger and condenser, low temperature pipeline and submarine transportation pipeline.

2. Chemical composition

Cu :68.5～71.5
Zn:Remain
Pb:≤0．03
P:≤0．01
Fe:≤0．10
Sb :≤0．005
Bi:≤0.002
Impurity:≤0.3


3. Mechanical properties

Tensile strength: (σ B / MPA): ≥ 290

Elongation: (δ 10 /%) ≥ 40

4. Standard comparison

CategoryChinaUSUKGermanyJapan
GBASTMCDABSDINDigital systemJIS
Common Brass　C26100　Cz126　　-


5. OD table and tolerance

T mm
OD mm		0.15--0.20.2--0.30.3--0.50.5--0.80.8--1.21.2--1.81.8--2.52.5--33--4
2.5--5√√√　　　　　　
6--10√√√√√　　　　
11--15　√√√√√　　　
16--20　　√√√√　　　
20--25　　√√√√√　　
25--35　　√√√√√　　
35--45　　√√√√√√　
45--55　　　√√√√√√

outside diameterAverage tolerance
General (±mm)high(±mm)
3--150.090.05
15--250.10.06
25--500.150.08


6. Wall Thicknese and tolerance

wall thicknessAverage tolerance
General(mm)high(mm)
0.2--0.5±0.02--0.05±0.01--0.03
0.5--0.8±0.05--0.08±0.02--0.05
0.8--1.5±0.08--0.15±0.05--0.12
1.5--2.5±0.15--0.25±0.12--0.2
2.5--4±0.25--4±0.2--0.3

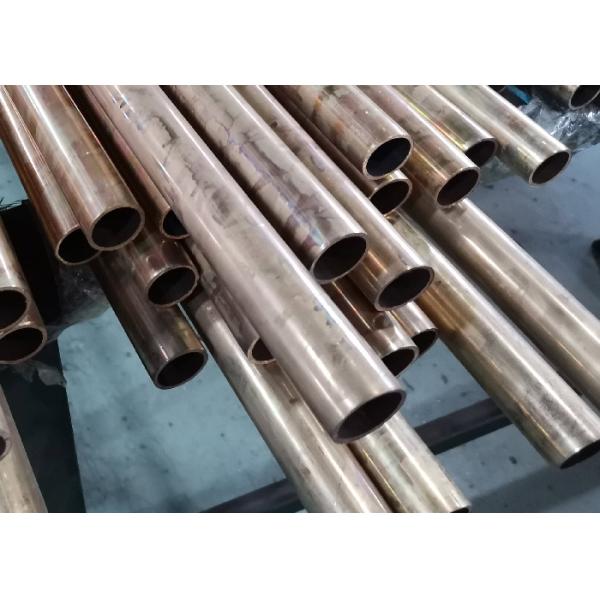

7. Details picture
Heat Exchanger ASTM C26100 Seamless Copper Tube
