Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Great Conductivity ASTM C11000 Pure Copper Seamless Tube
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM C11000
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
plywooden boxes
Impurity content :
≤0.1%
Softening temperature :
900～1050℃
Grade :
ASTM C11000
Length :
Negotiation
3rd Party :
Support
Package :
Plywood wooden box for export
Description

ASTM C11000 Pure Copper Seamless Tube With Great Conductivity In Electricity And Heat

1. Description

ASTM C11000 American Standard pure copperr, also known as red copper, with good conductivity and thermal conductivity, excellent plasticity, easy to hot press and cold pressure processing, a large number of used in the manufacture of wires, cables, brushes, special electrical discharge copper products with good conductivity. Pure copper from sulfide or oxide copper ore can be used for casting money and making utensils. Application: it can be used in electrical appliances, steam slide building and chemical industry, especially terminal printing, electrical circuit board, copper tape, air cushion and bus bar terminal for wire shielding. Electromagnetic switch, pen holder, roof root board, etc.

2. Chemical composition

Cu+Ag:≥99.90
Sn :≤0.002
Zn:≤0.005
Pb:≤0.005
Ni:≤0.005
Fe:≤0.005
Sb :≤0.002
S :≤0.005

3. Mechanical properties

Tensile strength σ B (MPA) Elongation δ 10 (%)
≥ 205 ≥ 30%

4. Standard comparison

Category China US UK Germany Japan
GB ASTM CDA BS DIN Digital system JIS
Pure copper T2 C11000 110 C102 Ecu-58 2.0090 C1100

5. OD table and tolerance

T mm
OD mm		 0.15--0.2 0.2--0.3 0.3--0.5 0.5--0.8 0.8--1.2 1.2--1.8 1.8--2.5 2.5--3 3--4
2.5--5 √ √ √ 　 　 　 　 　 　
6--10 √ √ √ √ √ 　 　 　 　
11--15 　 √ √ √ √ √ 　 　 　
16--20 　 　 √ √ √ √ 　 　 　
20--25 　 　 √ √ √ √ √ 　 　
25--35 　 　 √ √ √ √ √ 　 　
35--45 　 　 √ √ √ √ √ √ 　
45--55 　 　 　 √ √ √ √ √ √

outside diameter Average tolerance
General (±mm) high(±mm)
3--15 0.09 0.05
15--25 0.1 0.06
25--50 0.15 0.08

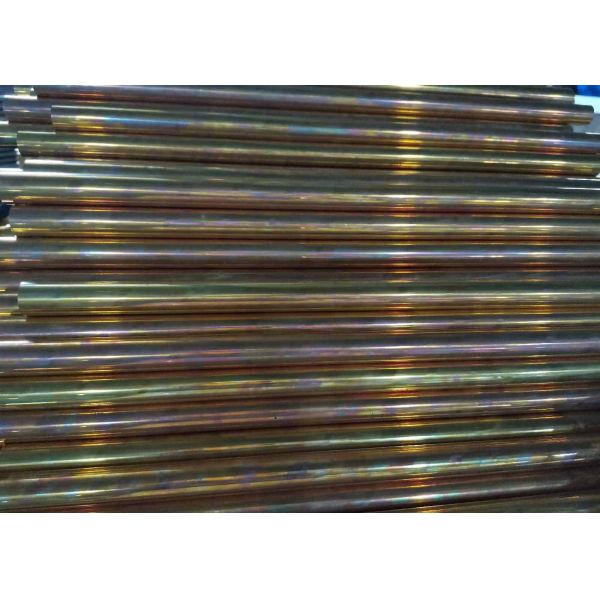

6. Details picture

Great Conductivity ASTM C11000 Pure Copper Seamless Tube
