No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
Specifications
MOQ :
10 PCS
Price :
USD negotiation per Ton
Supply Ability :
1000 Ton per 30 days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Brand Name :
FRANK STEEL
Model Number :
Red copper, brass, white copper
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
Brass coil :
Red copper, brass, white copper
modelling :
standard arc, elliptical arc, S-bend, rotary modeling
chemical composition :
Meet the specified standard requirements
Common brass :
C21000 ，C22000，C23000，C26000
Lead brass :
C35300, C36000, C37800, C38000
Discoid :
Each coil size is produced according to customer's requirements
corrosion-resistant :
Brass coil is safe, no leakage, no combustion, no toxic gas, corrosion-resistan
easy to connect :
Brass coil is easy to connect copper can change shape, because copper pipe can be bent and deformed, it can often be made into elbow and joint, smooth bending allows copper pipe to bend at any angle.
Length :
≥100M or Negotiation
Description

No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway

1. Description

Brass coil, technically unlimited lengthgenerally 5mm-70mm in diameter and 0.1cm-5.0mm in thickness, is made of common brass and lead brass. See the following list for specific materials. Brass coil is widely used in chemical, mechanical, electronic, power, textile, rubber, food, equipment, aviation, aerospace, communication, petroleum and other industrial fields.

A. Brass coil is economical because it is easy to process and connect, so it can save material and total cost, stability and reliability, and can save maintenance.

B. Brass coil is portable for internal threaded pipes of the same internal diameter, and the thickness of ferrous metal is not required for copper pipes. When installed, the transportation cost of copper pipe is smaller, the maintenance is easier, and the occupied space is smaller.

C. Brass coil is easy to connect copper can change shape, because copper pipe can be bent and deformed, it can often be made into elbow and joint, smooth bending allows copper pipe to bend at any angle.

D. Brass coil is safe, no leakage, no combustion, no toxic gas, corrosion-resistant.

2. Standard comparison

Category China US UK Germany Japan
GB ASTM CDA BS DIN Digital system JIS
Common brass H96 C21000 210 Cz125 CuZn5 2.0020 C2100
H90 C22000 220 Cz101 CuZn10 2.0230 C2200
H85 C23000 230 Cz102 CuZn15 2.0240 C2300
C23030 　 　
H80 C24000 240 Cz103 CuZn20 2.0250 C2400
H70 C26000 260 Cz106 CuZn30 2.0265 C2600
　 C26100 　 Cz126 　 -
H68A - 　 　 -
H68 C26200 　 CuZn33 2.0280
H65 C26800 268 Cz107 CuZn36 2.0335 C2680
　 C27000 270 　 C2700
H63 C27400 272 Cz108 CuZn37 2.0321
　 C27200 2.0360 C2720
H62 C28000 280 CuZn40 　 C2800
H60 C28000 280 Cz109 CuZn40 　 C2801


5. OD table and tolerance

T mm
OD mm		 0.15--0.2 0.2--0.3 0.3--0.5 0.5--0.8 0.8--1.2 1.2--1.8 1.8--2.5 2.5--3 3--4
2.5--5 √ √ √ 　 　 　 　 　 　
6--10 √ √ √ √ √ 　 　 　 　
11--15 　 √ √ √ √ √ 　 　 　
16--20 　 　 √ √ √ √ 　 　 　
20--25 　 　 √ √ √ √ √ 　 　
25--35 　 　 √ √ √ √ √ 　 　
35--45 　 　 √ √ √ √ √ √ 　
45--55 　 　 　 √ √ √ √ √ √

outside diameter Average tolerance
General (±mm) high(±mm)
3--15 0.09 0.05
15--25 0.1 0.06
25--50 0.15 0.08


3. Wall Thicknese and tolerance

wall thickness Average tolerance
General(mm) high(mm)
0.2--0.5 ±0.02--0.05 ±0.01--0.03
0.5--0.8 ±0.05--0.08 ±0.02--0.05
0.8--1.5 ±0.08--0.15 ±0.05--0.12
1.5--2.5 ±0.15--0.25 ±0.12--0.2
2.5--4 ±0.25--4 ±0.2--0.3

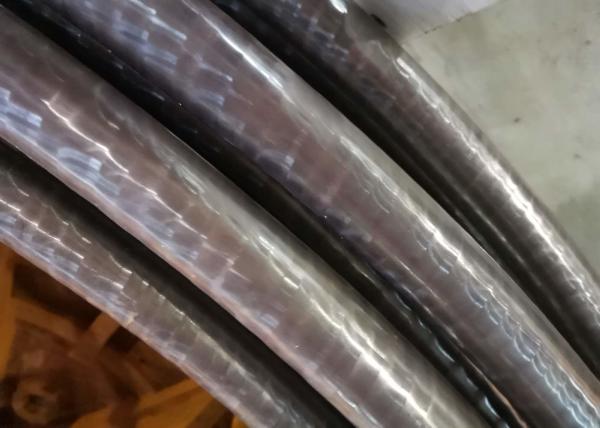

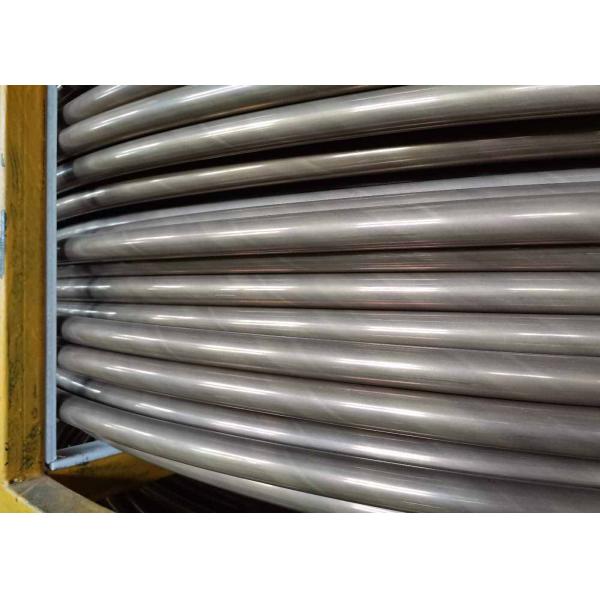

4. Details picture

No Joint Brass Seamless Coil Tube For Oil Pipe And Hydraulic Tube, Or Matching With High-Speed Railway
