ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM C36000
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
plywooden boxes for exporting
Pb :
(Pb)2.4～3.0
Softening temperature :
900～1050℃
Grade :
ASTM C36000
Length :
Negotiation ≤12M
3rd Party :
Supported BV SGS
Package :
Plywood wooden box for export
Description

ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage

1. Description

ASTM C36000 lead brass has good ductility, deep drawing performance, excellent cutting performance, and high antifriction performance. It is used for clock structure and parts of automobile and tractor.

ASTM C36000 Lead brass seamless tube has good corrosion resistance, often used for heat exchanger, paper pipe, various water supply and drainage pipes.


2. Chemical composition

Zn:Remain
(Pb)2.4～3.0,
(Al)≤0.5,
(Fe)≤0.10,
(Sb)≤0.005,
(P)≤0.01,
(Bi)≤0.002,
(Cu)62.0～65.0,
Impurity%≤0.75


3. Mechanical properties

TENSILE STRENGTH(N/mm2) ≥510
10(%)ELONGATION ≥2

4. Standard comparison

Category China US UK Germany Japan
GB ASTM CDA BS DIN Digital system JIS
Leaded brass HPb60-2 C36000 　 Cz120 　 　 C3713
　 　 　 　 C3604
HPb59-2 C35300 　 　 　 C3771
HPb59-1 C37800 　 Cz122 CuZn39Pb2 2.0380 C3710
HPb58-2.5 C38000 　 Cz121 CuZn39Pb3 2.0401 C3603

5. OD table and tolerance

T mm
OD mm		 0.15--0.2 0.2--0.3 0.3--0.5 0.5--0.8 0.8--1.2 1.2--1.8 1.8--2.5 2.5--3 3--4
2.5--5 √ √ √ 　 　 　 　 　 　
6--10 √ √ √ √ √ 　 　 　 　
11--15 　 √ √ √ √ √ 　 　 　
16--20 　 　 √ √ √ √ 　 　 　
20--25 　 　 √ √ √ √ √ 　 　
25--35 　 　 √ √ √ √ √ 　 　
35--45 　 　 √ √ √ √ √ √ 　
45--55 　 　 　 √ √ √ √ √ √

outside diameter Average tolerance
General (±mm) high(±mm)
3--15 0.09 0.05
15--25 0.1 0.06
25--50 0.15 0.08


6. Wall Thicknese and tolerance

wall thickness Average tolerance
General(mm) high(mm)
0.2--0.5 ±0.02--0.05 ±0.01--0.03
0.5--0.8 ±0.05--0.08 ±0.02--0.05
0.8--1.5 ±0.08--0.15 ±0.05--0.12
1.5--2.5 ±0.15--0.25 ±0.12--0.2
2.5--4 ±0.25--4 ±0.2--0.3

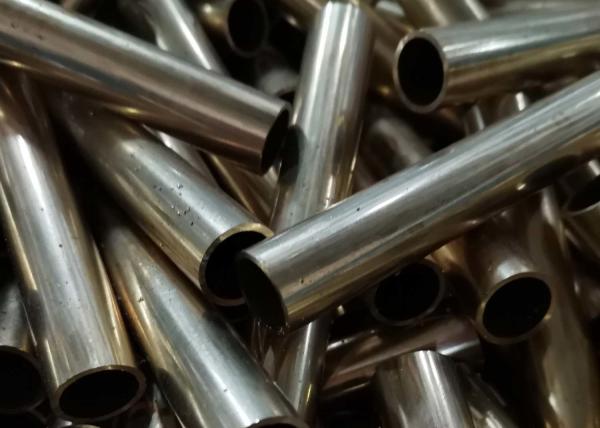

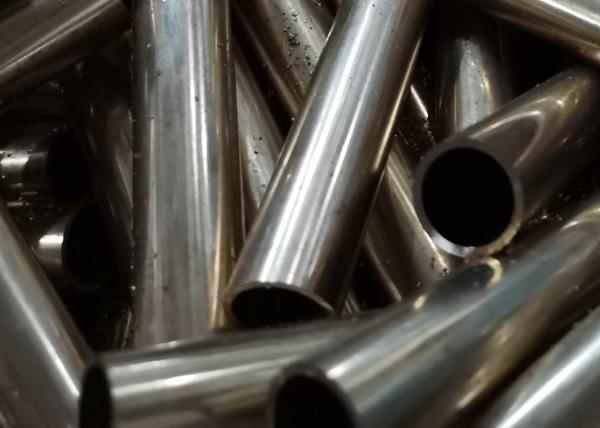

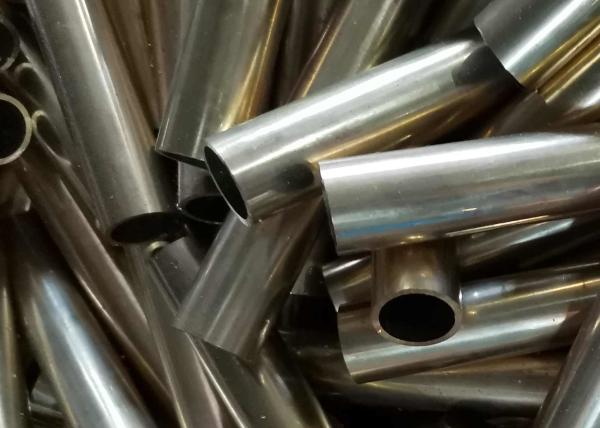

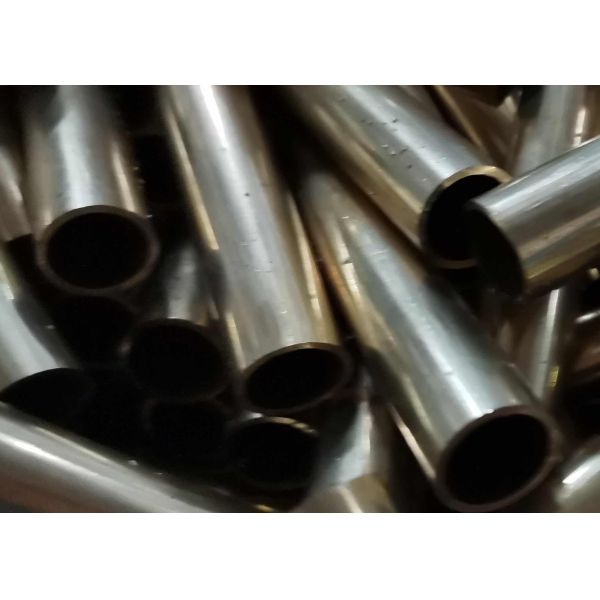

7. Details picture
ASTM C36000 Lead Brass Seamless Tubes For Heat Exchanger And Water Supply Or Drainage
