Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Heat Exchangers ASME SA179 High Pressure Boiler Tube
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASME SA179
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
2 Ton
Price :
USD negotiation per Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Application :
Boiler Pipe,Fluid Pipe,Industry
Technique :
Hot Rolled,Cold Drawn,Seamless,Cold Finished
Standard :
ASME SA179
Alloy or not :
Non-alloy
Surface :
Customers't Requirement
Outer diameter(round) :
cold-drawn: 8mm--168.3mm, hot -rolled: >168.3mm
Material :
carbon steel
Usage :
Stream, high temperature
Shape :
Round Shape
Description

ASME SA179 Boiler Seamess Steel Tube For Heat Exchangers And Condensers.

1. Description

ASME SA179 is a seamless steel tube for heat exchange and condenser. It is a cold drawing process and widely used in heating pipes, superheaters, reheaters, pressure vessels and instruments. This product is cold drawing seamless steel tube, with an outer diameter of 1 / 8in-3in (3.2mm-76.2mm). Generally, the working pressure is below 9.8MPa, and the working temperature is between 450 ℃ ~ 650 ℃.

Each ASME SA179 pipe has undergone strict production control and quality inspection to ensure that the chemical composition and physical properties of each pipe are the best. Our ASME SA179 products are exported to many countries in the world and used in many high-temperature and high-pressure industries. They are recognized and trusted by customers.

ASME SA179 seamless high-pressure boiler steel pipe for export can be painted and marked on the surface, threaded and chamfered on both ends, covered pipe protection caps on both ends. It has various export packaging methods to ensure the safe transportation of products.

Our products are sold well all over the world, and high quality products are unanimously recognized by customers.

2. Chemical composition

Standards Steel pipes No. Chemical composition(%)
C Mn P S
ASME SA179 SA179 0.06～0.18 0.27～0.63 ≤0.035 ≤0.035

3. Physical Properties

Standards Steel pipes No. Tensile strength(MPa) Bend strength(MPa) Elongation(％)
ASME SA179 SA179 ≥325 ≥180 ≥35

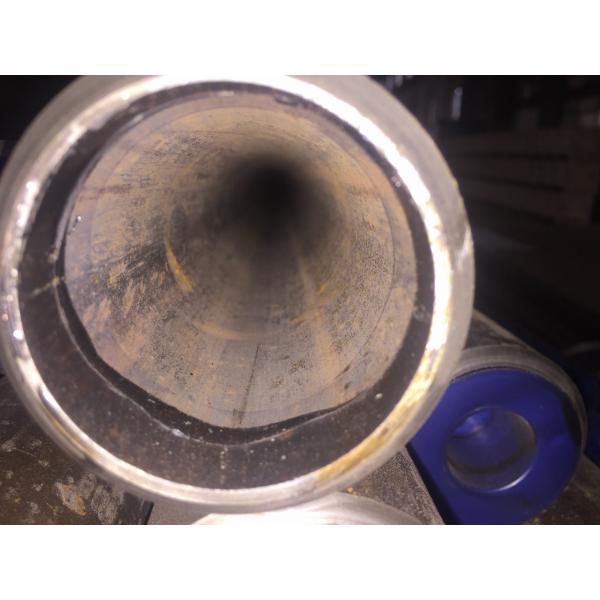

4. Details Picture

Heat Exchangers ASME SA179 High Pressure Boiler Tube
