Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM C12200
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
plywooden boxes
Impurity content :
≤0.15%
Softening temperature :
900～1050℃
Grade :
ASTM C12200
Length :
Negotiation
3rd Party :
Support
Package :
Plywood wooden box for export
Description

ASTM C12200 Phosphorus Deoxidized Copper Tube For Air Condition Or Refrigerator

1. Description
ASTM c12200 is a phosphorous deoxidized brass. It has good weldability and cold bending properties, and generally does not have the tendency of "hydrogen disease". It can be processed and used in reducing atmosphere, but not in oxidizing atmosphere.

In Chinese standards, this brand includes TP1 and TP2. See the table below for details. The residual phosphorus content of TP1 is less than that of TP2, so its conductivity and thermal conductivity are higher than that of TP2.

TP1 and TP2 are mainly used for pipeline applications, and ASTM c12200 phosphorus deoxidized copper pipes are used for gasoline or gas transmission tubes, drainage tubes, condensing tubes, ore tubes, condensers, evaporators, heat exchangers and train box components.

2. Chemical composition

Cu+Ag:≥99.85
Sn :≤0.01
Pb:≤0.005
P:0.013~0.050
Ni:≤0.01
Fe:≤0.05
Sb :≤0.002
S :≤0.005
As :≤0.005
Bi:≤0.002
O:≤0.01
Impurity:≤0.15


3. Mechanical properties
Tensile strength σ B (MPA): 215 ~ 275

Elongation δ 10 (%): ≥ 25

Hardness: 55 ~ 100hv

4. Standard comparison

CategoryChinaUSUKGermanyJapan
GBASTMCDABSDINDigital systemJIS
Deoxidized copper by phosphorTP1C12000-C106SW-Cu2.0076C1201
C12100　　SF-Cu2.0090C1220
TP2C12200122　　　


5. OD table and tolerance

T mm
OD mm		0.15--0.20.2--0.30.3--0.50.5--0.80.8--1.21.2--1.81.8--2.52.5--33--4
2.5--5√√√　　　　　　
6--10√√√√√　　　　
11--15　√√√√√　　　
16--20　　√√√√　　　
20--25　　√√√√√　　
25--35　　√√√√√　　
35--45　　√√√√√√　
45--55　　　√√√√√√

outside diameterAverage tolerance
General (±mm)high(±mm)
3--150.090.05
15--250.10.06
25--500.150.08


6. Wall Thicknese and tolerance

wall thicknessAverage tolerance
General(mm)high(mm)
0.2--0.5±0.02--0.05±0.01--0.03
0.5--0.8±0.05--0.08±0.02--0.05
0.8--1.5±0.08--0.15±0.05--0.12
1.5--2.5±0.15--0.25±0.12--0.2
2.5--4±0.25--4±0.2--0.3

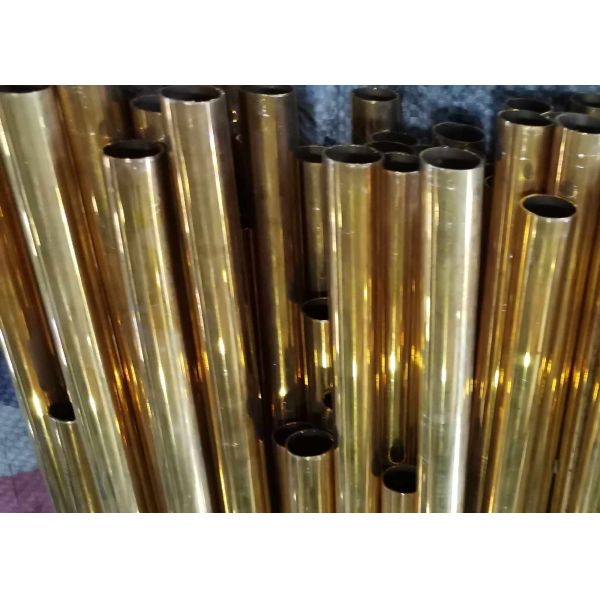

7. Details picture
Refrigerator ASTM C12200 Phosphorus Deoxidized Copper Tube
