Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASME SA106 Grade A
Certification :
DNV / LR / BV
Place of Origin :
P.R.CHINA
MOQ :
2 Tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
Standard :
ASME SA106 Grade A
Length :
Negotiation between 4-12M
Protection :
Plastic Caps on both ends
Marks :
As per customer's requirement
3rd party exam :
Supported
Front money :
30% of total amount
Shipping insurance :
Negotiation
Surface :
Painted, Oiled, Galvanized, Hosphate
Out Diameter :
cold-drawn 8mm-168.3mm, hot-rolled >168.3mm
Wall Thickness :
Negotiation
Bevelled :
Supported
Material :
Grade A low Carbon Steel
Description

ASME SA106 Grade A Seamless Carbon Steel Tube For High Temperature Service

Please send us OD, thickness, length that you want. We will reply a quotation right away.

1. Product Description

This specification covers carbon steel tube for high-temperature service. These tubes are suitable for welding, bending, flanging, and similar forming operations.

Strictly tested accordance with the ASME SA106 standard, our products chemical composition and physical properties fully meet the requirements of the standard. This product is a seamless steel tube, which with cold drawing and hot rolling two produce ways in outer diameter of 1 / 8in-48in (3.2mm-1219.2mm), normally cold-drawn 8mm-168.3mm, hot-rolled >168.3mm.

For antirust purpose, customer can request black painted, blue painted, and oil soaking.

For both sides protection, customer can request plastic caps.

For up-market needed, customer can request addition internal and external burr cleaning and beveling.

2. Industrial application

ASME SA106 Grade A Seamless carbon steel tubes are widely used in high-temperature industries. This product is mainly used for header and steam pipe of low and medium pressure boiler (the working pressure is generally not more than 5.88MPA, and the working temperature is below 450 ℃).

3. Chemical composition

Standards Grade No. Chemical composition(%)
C Si Mn P S Cr Mo Cu Ni V

ASME SA106

 SA106A ≤0.25 > 0.1 0.27～0.93 ≤0.035 ≤0.035 ≤0.4 ≤0.15 ≤0.4 ≤0.4 ≤0.08
SA106B ≤0.3 > 0.1 0.29～1.06 ≤0.030 ≤0.030 ≤0.4 ≤0.15 ≤0.4 ≤0.4 ≤0.08
SA106C ≤0.35 > 0.1 0.29～1.06 ≤0.030 ≤0.030 ≤0.4 ≤0.15 ≤0.4 ≤0.4 ≤0.08

4. Physical properties

Standards Steel pipes No. Tensile strength(MPa) Bend strength(MPa) Elongation(％) Impact energy(J) Hardness
ASME SA106 SA106A ≥330 ≥205 ≥28 ≥35 /
SA106B ≥415 ≥240 ≥22 ≥35 /
SA106C ≥485 ≥275 ≥20 ≥35 /

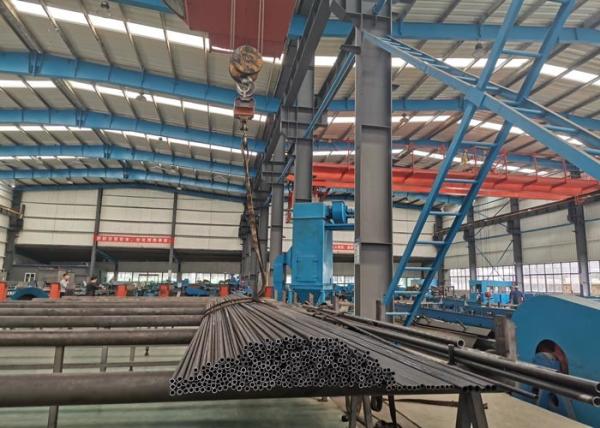

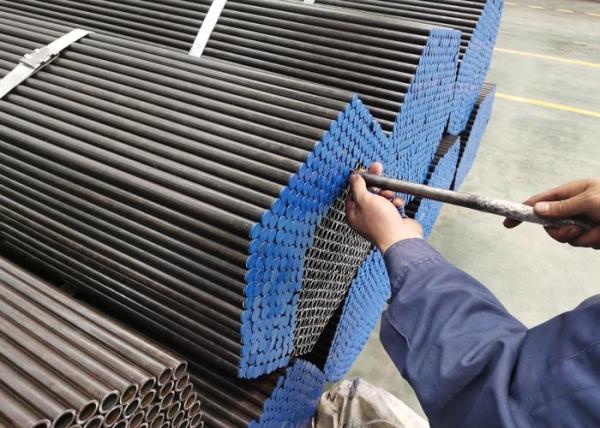

5. Details Picture

Pressure Liquid ASME SA106 Grade A Seamless Steel Tube Custom-Made
