Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM A519 4140
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
USD negotiation per Ton
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
OD :
3.2-1219.20mm
Length :
Negotiation ≤12M
Surface :
Painted, Oiled, or negotiation
Package :
Plywood wooden box for export
Usefulness :
Machanical industries
Grade :
ASTM A519 4140
Description

ASTM A519 4140 Mechanical Seamless Steel Pipes For Precision Equipment, Instruments And Structures

Produce according to custom order only. Tell us OD, wallthickness you want, let's begin with a quotation first.

1. Description

ASTM A519 4140 is Mechanical alloy seamless steel pipe, carbon and manganese content is high, of which the important element free Cr (0.80-1.10) Mo (0.15-0.25), 4140 material has very strong physical properties and relatively high price. In addition, the annealing treatment method also determines its performance. Customers tell us when placing an order according to their own use requirements, Our production technology is very mature and the quality is very good. The raw materials of 1045 are very sufficient. We can produce and deliver as soon as possible according to the demand of passenger and freight orders. Some products may be in stock. Welcome to inquire


We are specialized in exporting all kinds of ASTM A519 1045 seamless steel tubes for machinery. These mechanical pipes are made of carbon steel and alloy steel by cold drawing or hot rolling. Different steel grade may have different produce progress. These pipes have great properties for making machinery arms, automobile shock absorber, axle shaft sleeve and axle housing.

The chemical composition and physical properties are strictly controlled during the production of steel pipe to ensure that the customer's use, the tolerance of outer diameter and wall thickness can fully meet the standard requirements. The steel pipe surface can be sprayed, painted, oiled and passivated according to the customer's requirements. There are many ways to pack products, such as bare packing, simple packing and wooden box packing. Please refer to ASTM A519 table as below for grades.

2. Chemical composition

Grade C Mn P≤ S≤ Si Cr Mo
1010 0.08-0.13 0.30-0.60 0.04 0.05 - - -
1020 0.18-0.23 0.30-0.60 0.04 0.05 - - -
1035 0.32-0.38 0.60-0.90 0.04 0.05 - - -
1045 0.43-0.50 0.60-0.90 0.04 0.05 - - -
4130 0.28-0.33 0.40-0.60 0.04 0.05 0.15-0.35 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 0.04 0.05 0.15-0.35 0.80-1.10 0.15-0.25

3. Mechanical Properties

Grade Condition MPa Tenslle Point Yield Point Elongation
1020 CW ≥414 ≥483 ≥5%
　 SR ≥345 ≥448 ≥10%
　 A ≥193 ≥331 ≥30%
　 N ≥234 ≥379 ≥22%
1025 CW ≥448 ≥517 ≥5%
　 SR ≥379 ≥483 ≥8%
　 A ≥207 ≥365 ≥25%
　 N ≥248 ≥379 ≥22%
4130 SR ≥586 ≥724 ≥10%
　 A ≥379 ≥517 ≥30%
　 N ≥414 ≥621 ≥20%
4140 SR ≥689 ≥855 ≥10%
　 A ≥414 ≥552 ≥25%
　 N ≥621 ≥855 ≥20%

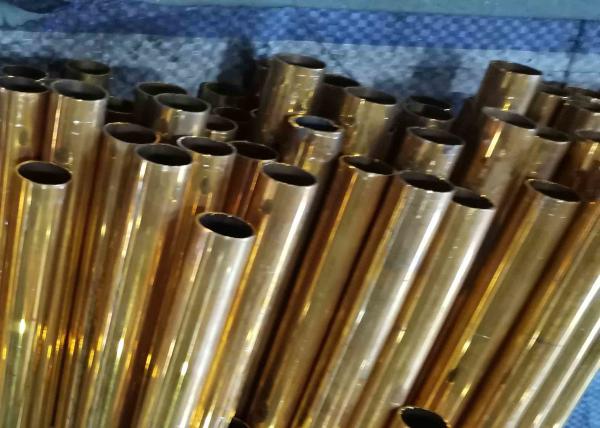

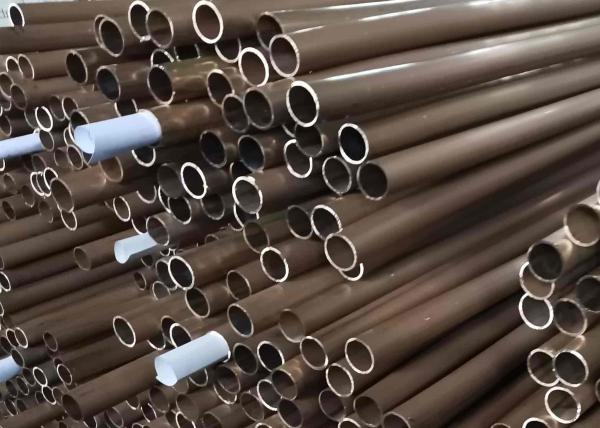

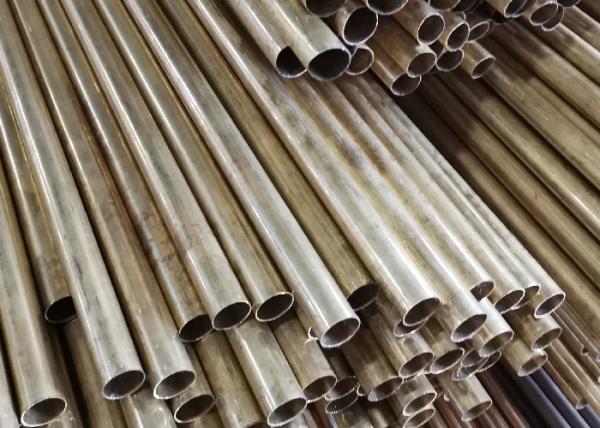

4. Details picture

Precision Equipment ASTM A519 4140 Mechanical Steel Tube Customizable tubes (Custom tailor)

About us

We are seamless steel pipe manufacturer. All the pipes are custom made. Please tell us what steel grade (standard) you want, and we will quote you immediately. The outer diameter, wall thickness, length and quantity of the pipe are necessary.
