ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
ASTM A519 1020 Mechanical Steel Tube
Specifications
Brand Name :
FRANK STEEL
Model Number :
ASTM A519 1020
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
USD negotiation per Ton
Payment Terms :
T/T
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
Simple packing in hexagon shape per bunch or plywooden boxes
OD :
3.2mm-1219.20mm
Length :
Negotiation ≤12M
Surface :
Painted, Oiled, or negotiation
Package :
Plywood wooden box for export
Usefulness :
Machanical industries
Grade :
ASTM A519 1020
Description

ASTM A519 1020 Mechanical Seamless Steel Pipes For Automobile Parts

1. Description

ASTM A519 1020 is a widely used seamless steel pipe for machinery. Our production technology is very mature and the quality is very good. The raw materials of 1020 are very sufficient. We can produce and deliver as soon as possible according to the demand of passenger and freight orders. Some products may be in stock. Welcome to inquire


At present, the most major export grades are: 1010, 1020, 1035, 1045, 4130, 4140 . Customers choose according to their own actual needs. ASTM A519 tubes is used to manufacture seamless steel pipes for containers, equipment, pipe fittings and steel structures, automobile pipes, medium and low pressure boiler pipes, liquid pipes and electric heater pipes.

2. Chemical composition

Grade C Mn P≤ S≤ Si Cr Mo
1010 0.08-0.13 0.30-0.60 0.04 0.05 - - -
1020 0.18-0.23 0.30-0.60 0.04 0.05 - - -
1035 0.32-0.38 0.60-0.90 0.04 0.05 - - -
1045 0.43-0.50 0.60-0.90 0.04 0.05 - - -
4130 0.28-0.33 0.40-0.60 0.04 0.05 0.15-0.35 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 0.04 0.05 0.15-0.35 0.80-1.10 0.15-0.25

3. Mechanical Properties

Grade Condition MPa Tenslle Point Yield Point Elongation
1020 CW ≥414 ≥483 ≥5%
　 SR ≥345 ≥448 ≥10%
　 A ≥193 ≥331 ≥30%
　 N ≥234 ≥379 ≥22%
1025 CW ≥448 ≥517 ≥5%
　 SR ≥379 ≥483 ≥8%
　 A ≥207 ≥365 ≥25%
　 N ≥248 ≥379 ≥22%
4130 SR ≥586 ≥724 ≥10%
　 A ≥379 ≥517 ≥30%
　 N ≥414 ≥621 ≥20%
4140 SR ≥689 ≥855 ≥10%
　 A ≥414 ≥552 ≥25%
　 N ≥621 ≥855 ≥20%

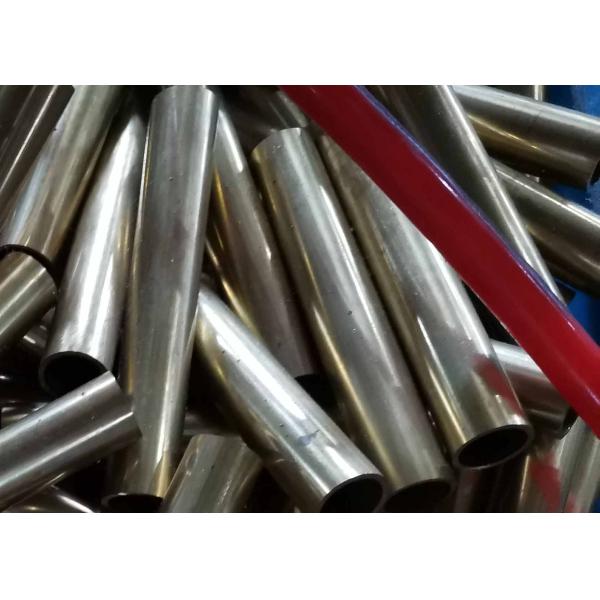

4. Details picture

ASTM A519 1020 Mechanical Steel Tube
