Large Volume CNG Gas Cylinder Group 4130Q Material 914mm 715mm 559mm Length
Large Volume CNG Gas Cylinder Group 4130Q Material 914mm 715mm 559mm Length
Large Volume CNG Gas Cylinder Group 4130Q Material 914mm 715mm 559mm Length
Large Volume CNG Gas Cylinder Group 4130Q Material 914mm 715mm 559mm Length
Specifications
Brand Name :
NEW FORCE
Model Number :
914mm, 715mm, 519mm
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Delivery Time :
2~10 weeks
Packaging Details :
bare & loose
Structure :
Seamless
Usage :
CNG Storage
Certificate :
ASME U, ASME U2
Material :
4130Q
Application :
CNG, Hydrogen
Size :
914mm, 715mm, 519mm
Description

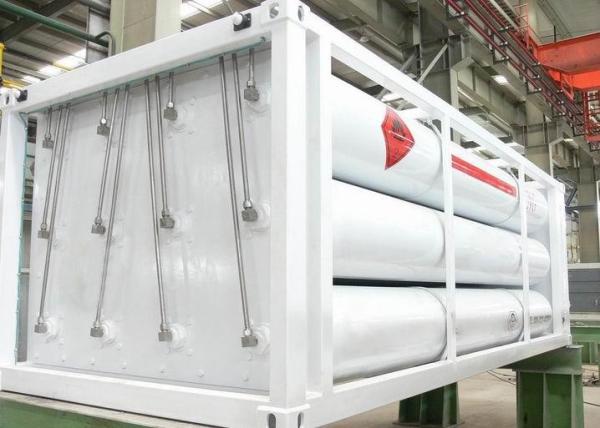

Large Volume CNG Gas Storage Cylinder Group 914mm 715mm and 559mm ​​

Large volume gas cylinder group mainly consists of supporting seat, seamless steel cylinder, safety valve, pressure gauge, inlet & outlet valve, down valve and other parts. it is a special device for CNG storage and can be used as the gas source for gas filling stations, improving its operation efficiency. It can also be used as the peaking gas source for natural gas pipeline network, strengthening its operation order.

Certificates:ASME U, ASME U2

Applicable standard:ASME VIII, ISO 11120-1999, dot sp8009, Q321088HGF 005-2012

Designed pressure:20MPa, 25MPa

Material:ASTM A519 4130Q, ASME SA372 grade J, Classes 110

Manufacture processing: Three-dimensional cold rolling + Hot spinning

Stationary Ground Storage & Movable

Shapes: Cylindrical & Spherical

Applicable gas: CNG, hydrogen

Applicable field: Natural Gas Fueling Station, Gas Storage Station, Marine storage cylinders, High pressure natural gas, hydrogen transport, etc.

Cylinder Types OD (mm) WT (mm) Length (m)
Cold-rolled Seamless 559 (22'') 12~30 6~11.7
715 20~40
914 (36'') 22.5~50

Manufacturing Process:

Raw Material Inspection → Cold Centering → Heating → Piercing & Rolling → Cold rolling →

Heat Treatment → Testing → Straightening → NDE → Visual & Dimension Inspection →

Hot Spinning → Heat Treatment → Lab Testing → Hydro & NDE Testing → Storing & Shipping

Technology Advantage:

The World’s Largest Cold Rolling Mill with φ960mm: Three Dimensional cold rolling, with high dimensional accuracy, mechanical properties of isotropic uniform, high finished product rate and low cost.

Large Volume CNG Gas Cylinder Group 4130Q Material 914mm 715mm 559mm Length
