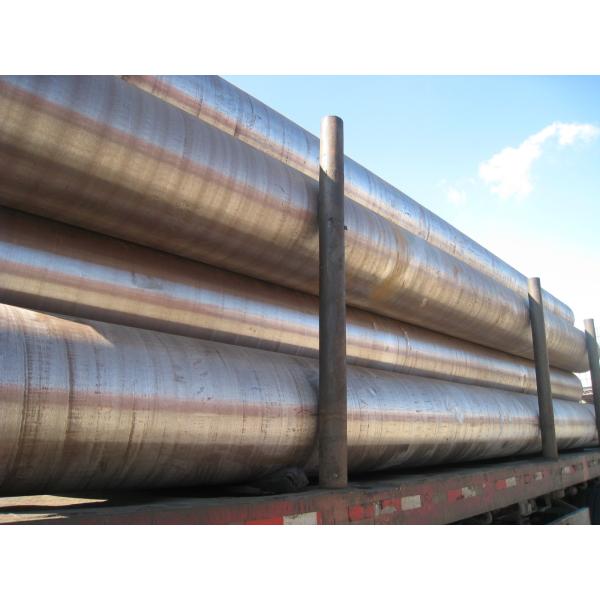

ASTM A335 P91 Seamless Alloy Steel Pipe High Pressure Boiler tube 1422 * 140mm size

1. Reference Documents

• ASTM A999/A 999M Specification for General requirements for Alloy and Stainless Steel Pipe.
• ASTM E 213 Practice for Ultrasonic Examination of metal Pipe and Tubing
• ASTM E 309 Practice for Eddy-Current Examination of Steel Tubular Products Using Magnetic Saturation
• ASTM E 381 Method of Macroetch testing Steel Bars, Billets, Blooms, and Forgings
• ASTM E 570 Practice for Flux Leakage Examination of Ferromagnetic Steel Tubular Products
• ASME B26.10M Welded and Seamless Wrought Steel Pipe

2. Standards:
ASTM A335 Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

3. Application:
For high pressure boiler and steam header pipes; petrochemical industry pipes; thermal power plant; nuclear power plant; USC boiler.

4. Ordering Information

Quantity (feet, meters, or number of lengths),

Name of material (seamless alloy steel pipe),

Grade (P91),

Manufacture (hot-finished or cold-drawn),

Size using one of the following:

NPS and schedule number;

Outside diameter and nominal wall thickness;

Outsider diameter and minimum wall thickness;

Inside diameter and nominal wall thickness;

Inside Diameter and minimum wall thickness.

Length (specific or random)

End finish (plain end or bevel end)

5. Chemical Requirements

6. Available Size Range

7. Tensile Requirements

Tensile Strength min.: 85ksi / 585MPa

Yield Strength min.: 64ks / 415MPa

8. Inspection & Test

Chemical composition, mechanical properties ( tensile strength, yield strength, elongation, flaring, flattening, bending, hardness, impact test), surface and dimension, NDE, hydrostatic test.

9. Manufacture

Hot Rolled or Cold Drawn

10. Manufacturing Process

Raw Material Inspection → Cold Centering → Heating → Piercing & Rolling → SIzing → Heat Treatment → Testing → Finishing → NDE → Visual & Dimension Inspection → Marking → Storing & Shipping

11. Supplementary Requirements

S1. Product Analysis

S2. Transverse Tension Tests

S3. Flattening Test

S4. Metal Structure and Etching Tests

S5. Photomicrographs

S6. Photomicrographs for Individual Pieces
