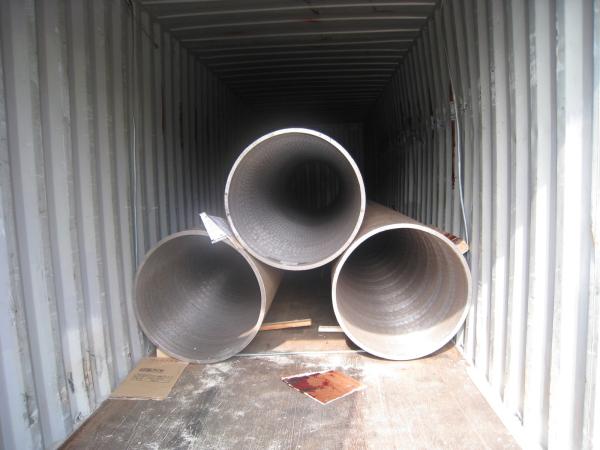

ASTM A106 Grade B Carbon Steel Pipes And Tubes Boiler Fitted MTC Certificated
ASTM A106 Grade B Carbon Steel Pipes And Tubes Boiler Fitted MTC Certificated
ASTM A106 Grade B Carbon Steel Pipes And Tubes Boiler Fitted MTC Certificated
ASTM A106 Grade B Carbon Steel Pipes And Tubes Boiler Fitted MTC Certificated
Specifications
Brand Name :
NEW FORCE
Model Number :
56''
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Delivery Time :
5~10 weeks
Packaging Details :
bare and loose
Steel :
Carbon Steel
Application :
High Pressure Boiler
Material :
Gr. B
Standard :
ASTM A106
Size :
1422mm x 120mm
OD :
56''
Description

ASTM A106 Grade B Carbon Steel Pipes And Tubes Boiler Fitted MTC Certificated

As we know ASTM A106 Grade B pipe is one of the most popular seamless steel pipes applied in different industries. Not only in pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.

ASTM A106 Grade B Carbon Steel Seamless Pipes are commonly used in low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electrical industry, shipbuilding, fertilizer equipment and pipeline, petrochemical.

ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.

1. Standards

ASTM A106 ——Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service

ASTM A335 ——Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

2. Application

For the high-pressure boiler and steam pipes, and the petrochemical industry pipes;
Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc.

3. Steel pipes No. of main production:

ASTM A335 Grade P5, P9, P11, P12, P22, P91, P92

ASTM A106 Grade B, C

4. Dimensional Tolerance

Pipe types OD (mm) Tolerance WT (mm) Tolerance
High Pressure Boiler Tube 219~457 ±1.0％ ≤20 -10% ~ +12.5%
20~40 -10% +10%
457~1422 ±0.9％ ＞40~70 -7％, +9％
＞70~20 -6％, +8％

5. Chemical Composition:

High Pressure Boiler Tube Chemical Requirements
Standard Grade UNS Designation Composition, %
C Mn P S Si Cr Mo Ni V Others
ASTM A335 P5 K41545 0.15max 0.30-0.60 0.025 0.025 0.50max 4.00-6.00 0.45-0.65 　 　 ...
P9 S50400 0.15max 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10 　 　 ...
P11 K11597 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65 　 　 ...
P12 K11562 0.05-0.15 0.30-0.61 0.025 0.025 0.50 max 0.80-1.25 0.44-0.65 　 　 ...
P22 K21590 0.05-0.15 0.30-0.60 0.025 0.025 0.50 max 1.90-2.60 0.87-1.13 　 　 ...
P91 K91560 0.08-0.12 0.30-0.60 0.02 0.01 0.20-0.50 8.00-9.50 0.85-1.05 0.4 0.18-0.25 N 0.030-0.070
Al 0.02max
Cb 0.06-0.10
Ti 0.01 max
Zr 0.01max
P92 K92460 0.07-0.13 0.30-0.60 0.02 0.01 0.50 max 8.50-9.50 0.30-0.60 0.4 0.15-0.25 N 0.03-0.07
Al 0.02 max
Cb 0.04-0.09
W 1.5-2.00
B 0.001-0.006
Ti 0.01 max
Zr 0.01 max
ASTM A106 Grade B 　 0.3 0.29–1.06 0.035 0.035 0.1 0.4 0.15 0.4 0.08 　
Grade C 　 0.35 0.29–1.06 0.035 0.035 0.1 0.4 0.15 0.4 0.08 　

6. Mechanical Properties

Standards Steel pipes No. Tensile strength Yield strength Elongation Impact energy Hardness
(Mpa) (Mpa) (%) (J)
ASTM A335 P5 ≥415 ≥205 ≥22 ≥35 ≤187HB
P9 ≥415 ≥205 ≥22 ≥35 　
P11 ≥415 ≥205 ≥22 ≥35 ≤163HB
P12 ≥415 ≥220 ≥22 ≥35 ≤163HB
P22 ≥415 ≥205 ≥22 ≥35 ≤163HB
P91 585～760 ≥415 ≥20 ≥35 ≤250HB
P92 ≥620 ≥440 ≥20 ≥35 ≤250HB
ASTM A106 Grade B ≥415 ≥240 ≥22 ≥35 /
Grade C ≥485 ≥275 ≥20 ≥35 /

7. Available Size Range:

OD Thickness
mm inch mm SCH
88.9~1422 3''~ 56'' 2.11~140 ≥SCH10
*If the steel grades and size you are looking for are not listed above, please contact us for further information.
