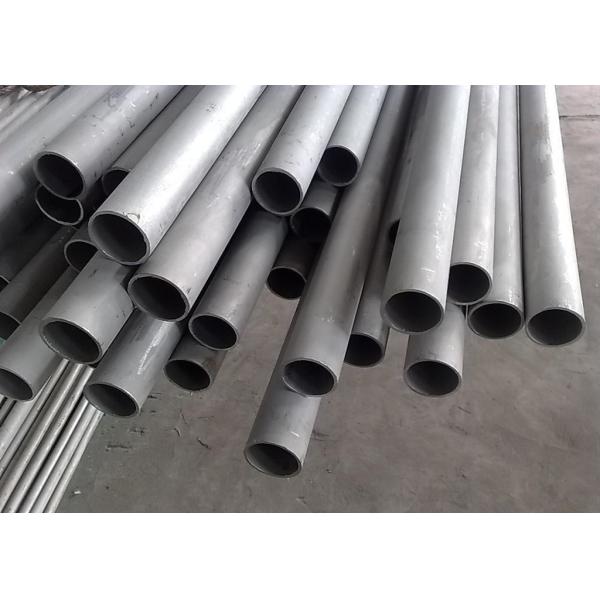

Thick Wall Heat Exchanger Steel Pipe , Stainless Steel Pipe ASTM A312 TP304
Thick Wall Heat Exchanger Steel Pipe , Stainless Steel Pipe ASTM A312 TP304
Thick Wall Heat Exchanger Steel Pipe , Stainless Steel Pipe ASTM A312 TP304
Thick Wall Heat Exchanger Steel Pipe , Stainless Steel Pipe ASTM A312 TP304
Specifications
Brand Name :
NEW FORCE
Model Number :
TP304
Certification :
MTC
Place of Origin :
China
MOQ :
1 ton or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 tons per month
Delivery Time :
1~10 weeks
Packaging Details :
steel bundle
Steel :
Thick Wall Stainless Steel Tube
Structure :
Seamless
Application :
Heat Exchanger
Material :
TP304
Standard :
ASTM A312
Size :
60.3*5.54mm
Description

ASTM A312 TP304 Heat Exchanger Steel Pipe , Thick Wall Stainless Steel Tube

ASTM A312 TP304 stainless steel seamless pipe supplied by us are industry standard approved and certified. Have major applications in oil, gas, petrochemical, power and desalination, civil construction, ship building, marine, food, diary and other association industries.

1. Available Size Range

OD Thickness
mm inch mm SCH
21.3~60.3 1/2''~ 2'' 1.65 ~ 5.54 SCH5S ~ 80S
*If the steel grades and size you are looking for are not listed above, please contact us for further information.

2. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

3. Steel pipes No. of main production:

TP201, TP304, TP304L, TP316L

4. Chemical Requirements

Chemical Composition %
Grade UNS Designation C Mn P S Si Cr Ni Mo Other
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 … 　
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0 … 　
TP304H S30409 0.04-0.10 2 0.045 0.03 1 18.0-20.0 8.0-11.0 … 　
TP316 S31600 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.00-3.00 　
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 　
TP316H S31609 0.04-0.10 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.00-3.00 　
TP321 S32100 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 … N: 0.1
TP321H S32109 0.04-0.10 2 0.045 0.03 1 17.0-19.0 9.0-12.0 … N: 0.1
Ti: 4(C+N) min;
0.70 max
TP347 S34700 0.08 2 0.045 0.03 1 17.0-19.0 9.0-13.0 … 　
TP347H S34709 0.04-0.10 2 0.045 0.03 1 17.0-19.0 9.0-13.0 … 　

4. Mechanical Properties

Mechanical Properties
Grade UNS Designation Tensile Strength, min ksi [Mpa] Yield Strength, min ksi [Mpa]
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]
TP304H S30409 75 [515] 30 [205]
TP316 S31600 75 [515] 30 [205]
TP316L S31603 70 [485] 25 [170]
TP316H S31609 75 [515] 30 [205]
TP321 S32100 75 [515] 30 [205]
TP321H S32109 75 [515] 30 [205]
TP347 S34700 75 [515] 30 [205]
TP347H S34709 75 [515] 30 [205]

Thick Wall Heat Exchanger Steel Pipe , Stainless Steel Pipe ASTM A312 TP304

One Stop Piping Solution

Seamless Steel Pipe Distribution

Piping Projects Support

For any requirements, please do not hesitate to contact us.
