T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size
T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size
T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size
T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size
Specifications
Brand Name :
NEW FORCE
Model Number :
T11
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Delivery Time :
2~10 weeks
Packaging Details :
steel bundle
Material :
T11
Standard :
ASTM A213
Steel :
Alloy Steel
Size :
48.3*10.15mm
Application :
Heat Exchanger Pipe
Length :
Fixed or Random
Description

T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size

TIPTOP’s state-of-the-art manufacturing processes and advanced inspection and testing procedures ensure our heat exchanger tubes stand up to the harshest environments. An experienced provider to the entire energy industry, TIPTOP is a reliable source for cold drawn and hot finished heat exchagner tube. TIPTOP has the capability and capacity to produce the size, specifications, quality and quantities you need.

1. Standard:
ASTM A213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

2. Ordering Information

Quantity (feet, meters, or number of lengths),

Name of material (seamless tubes),

Grade (T2, T5, T9, T11, T12, T22, T91, and T92),

Condition (hot finished or cold finished),

Size (outside diameter and minimum wall thickness),

Length (specific or random),

Hydrostatic Test or Nondestructive Electric Test

Increased Sulfur, and

Special requirements and any supplementary requirements selected.

3. Chemical Requirements

Chemical Requirements
Grade UNS Designation Composition, %
C Mn p S Si Cr Mo Other Elements
max max
T2 K11547 0.10-0.20 0.30-0.61 0.025 0.025 0.10-0.30 0.50-0.81 0.44-0.65 　
T5 K41545 0.15 max 0.30-0.60 0.025 0.025 0.50 max 4.00-6.00 0.45-0.65 　
T9 K90941 0.15 max 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10 　
T11 K11597 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65 　
T12 K11562 0.05-0.15 0.30-0.61 0.025 0.025 0.50 max 0.80-1.25 0.44-0.65 　
T22 K21590 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.9-2.6 0.87-1.13 　
T91 K90901 0.07-0.14 0.30-0.60 0.02 0.01 0.20-0.50 8.0-9.5 0.85-1.05 V 0.18-0.25
N 0.030-0.070
Ni 0.40 max
Al 0.04max
Nb 0.06-0.1
T92 K92460 0.07-0.13 0.30-0.60 0.02 0.01 0.50 max 8.5-9.5 0.30-0.60 Ni 0.40 max
V 0.15-0.25
B 0.001-0.006
Nb 0.04-0.09
N 0.030-0.070
Al 0.04max
W 1.50-2.00

4. Mechanical Properties

Mechanical Properties
Grade T2 T5 T9 T11 T12 T22 T91
Tensile strength, min: 　
ksi 60 60 60 60 60 60 85
Mpa 415 415 415 415 415 415 585
Yield strength, min: 　
ksi 30 30 30 30 30 30 60
MPa 205 205 205 205 220 205 415

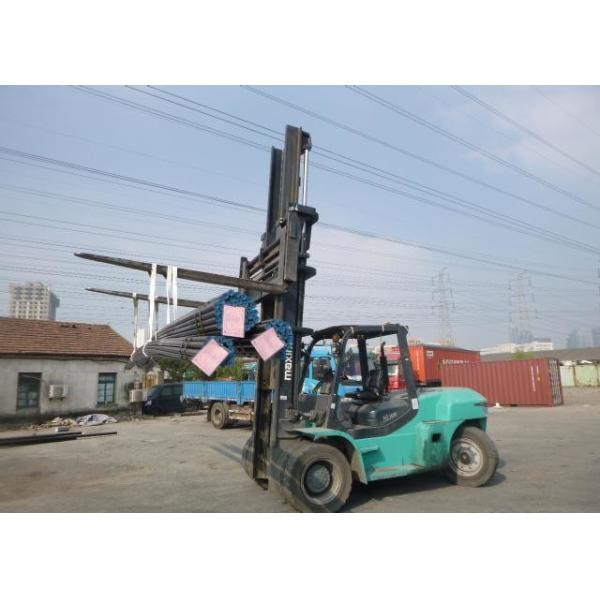

5. Package

Packed in steel bundle, seaworthy packing or as per customer’s requirement.

6. Available Size Range

OD Thickness
mm inch mm SCH
21.3~60.3 1/2''~ 2'' 2.11~11.07 SCH10~XXS
*If the steel grades and size you are looking for are not listed above, please contact us for further information.

T11 Material Alloy Seamless Steel Pipe / Tube Pipe Minimum Wall Thickness Size

One Stop Piping Solution

Seamless Steel Pipe Distribution

Piping Projects Support

For any requirements, please do not hesitate to contact us.
