Specifications
Brand Name :
XOOS
Model Number :
Gr. 1, Gr. 3, Gr. 6, Gr. 10, Gr. 4, Gr. 7, Gr. 8, Gr. 9
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons for each size
Price :
USD 1000~ 4000 per ton
Payment Terms :
L/C, T/T
Delivery Time :
4~20 weeks
Packaging Details :

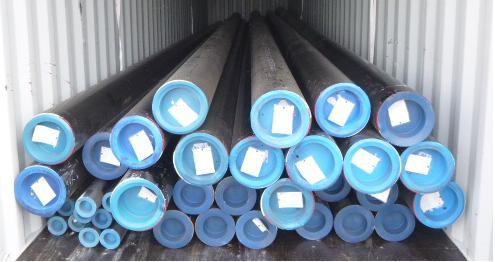

bare & loose for 8'' & above; packed in bundle for 6'' & below
Manufacture :
seamless
Description

1. Standards:
ASTM A333: Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness

2. Application:
Oil, Gas and water delivery;

Refinery, Boiler and Mechanical equipment manufacture;

structure construction; drilling, ship building and etc.

3. Ordering Information

Quantity (feet, centimeters, or number of lengths),

Name of material (seamless pipe),

Grade (Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, and Gr.10),

Size (NPS or outside diameter and schedule number of average wall thickness),

Lengths (specific or random),

End finish

Optional requirements

Test report required

4. Chemical Requirements

Chemical Requirements
Element Composition, %
Grade 1 Grade 3 Grade 4 Grade 6 Grade 7 Grade 8 Grade 9 Grade 10
Carbon (C) max 0.3 0.19 0.12 0.3 0.19 0.13 0.2 0.20
Manganese (Mn) 0.40-1.06 0.31-0.64 0.50-1.05 0.29-1.06 0.90 max 0.90 max 0.40-1.06 1.15-1.50
Phosphorus (P) max 0.025 0.025 0.025 0.025 0.025 0.025 0.025 0.035
Sulfur (S) max 0.025 0.025 0.025 0.025 0.025 0.025 0.025 0.015
Silicon (Si) … 0.18-0.37 0.08-0.37 0.10 min 0.13-0.32 0.13-0.32 … 0.10-0.35
Nickel (Ni) … 0.47-0.98 0.47-0.98 … 2.03-2.57 8.40-9.60 1.60-2.24 0.25 max
Chromium (Cr) … 0.44-1.01 0.44-1.01 … … … … 0.15 max
Copper (Cu) … 0.40-0.75 0.40-0.75 … … … 0.75-1.25 0.15 max
Aluminum (Al) … 0.04-0.30 0.04-0.30 … … … … 0.06 max
Vanadium (V) max … … … … … … … 0.12
Columbium (Cb)max … … … … … … … 0.05
Molybdenum (Mo) max … … … … … … … 0.05
Cobalt (Co) … … … … … … … …

5. Available Size Range

OD Thickness
mm inch mm SCH
21.3~1422 1/2''~ 56'' 2.11~140 ≥SCH10
*If the steel grades and size you are looking for are not listed above, please contact us for further information.
