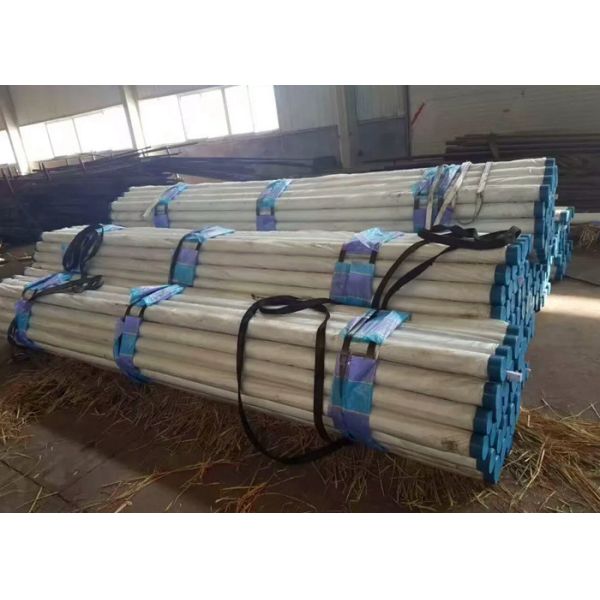

ASME SA210 Grade C High Pressure Seamless Carbon Steel Pipe
ASME SA210 Grade C High Pressure Seamless Carbon Steel Pipe
ASME SA210 Grade C High Pressure Seamless Carbon Steel Pipe
ASME SA210 Grade C High Pressure Seamless Carbon Steel Pipe
Specifications
Brand Name :
NEW FORCE
Model Number :
210
Certification :
MTC
Place of Origin :
CHINA
MOQ :
20 tons
Price :
USD/RMB/EURO
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons per month
Delivery Time :
one week
Packaging Details :
in bulk or sea-worthy wooden cases
Product Name :
ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe
Technique :
Cold Drawn
Standard :
ASTM SA210A
Material :
Grade C
OD :
10-90mm
WT :
1-10mm
Description

ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe

ASME SA 210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe are Medium Carbon Steel Tubes with max 0.35 % carbon content with combination of 0.29-1.06 % manganese. These Tubes are most commonly used for general purpose applications worldwide. ASME SA 210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe are ductile and strong Tubes with long wearing properties. These Tubes are manufactured as per ASME Specification and commercially referred as carbon steel Tubes.

Product ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe
Standard ASME SA210
Material Grade C
Surface Black paint, varnish, oil, galvanized
Pipe Length 5.8 m to 12 m, can be customized according to the length requirements
Pipe Ends Plain Ends, Beveled Ends
End Protector 1. Plastic caps (small OD) 2. Iron protector (large OD)
Application Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes
Test Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size
Productivity 50000 tons per month
Min Order 20 ton
Remark Special design available according to requirement

Packing: 

  • Packed in wooden box or bundles protected with plastic paper, and suitably protected for sea-worthily delivery or as requested.
  • The Product marking shall include the ASTM A210 or ASME SA210, size, heat no., Lot No. and Manufacture name or logo.

Chemical Properties of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe

Chemical Properties
Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
max 0.35 min 0.10 0.29-1.06 0.035 0.035 – – – – –

Mechanical Properties of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe

Grade Tensile Strength σb(Mpa) Yield Strength σs(Mpa) Elongation δ(%) Hardness (HRB)
C ≥275 30 ≤89

Features :

These tubes offer great resistivity to any stress and pitting cracks. There are no chances of any leakage. It bears maximum temperature and pressure. Increase the service of your equipment. These tubes have great surface finish and Provides extra strength to your equipment.

Applications of ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe:

ASTM A210 ASME SA210 Grade C High Pressure Boiler Seamless Carbon Steel Pipe offers high performance for industries like agriculture, manufacturing, oil & gas, which require reliable and rugged performance. We also offers a wide spectrum of these ASME SA210 GR C High Temperature Carbon Steel Tubes for use in a diverse range of industries including Power, Fertilizers, Cold Finisheds, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, and the like.

ASME SA210 Grade C High Pressure Seamless Carbon Steel Pipe

FAQ:

1. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation as per your request.

2. Can I request to advance the shipment?
A: It depends on whether there is sufficient inventory in our warehouse.

3. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.

4. What's your terms of payment?
A: T/T, L/C.

5.Do you accept custom design on size?
A: Yes, if the size is reasonable.
