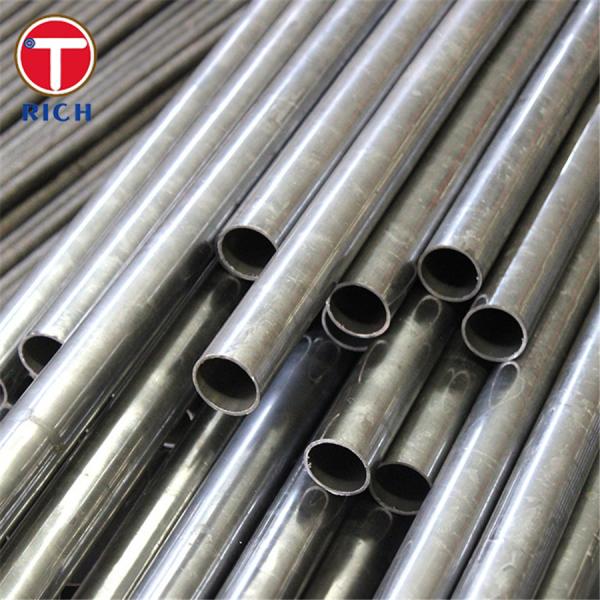

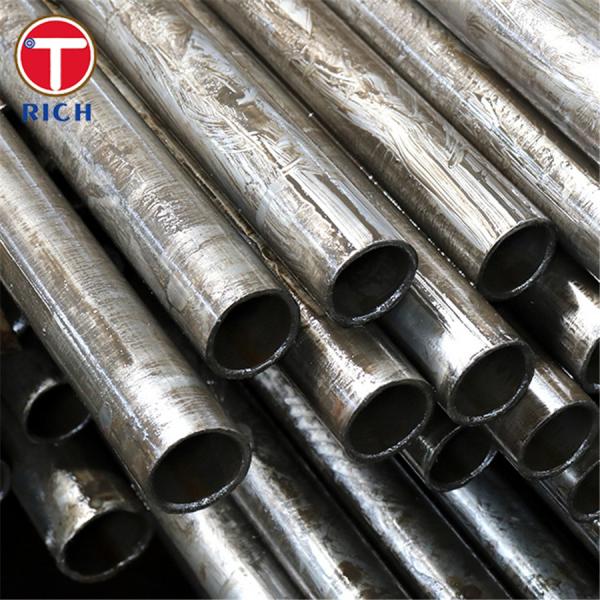

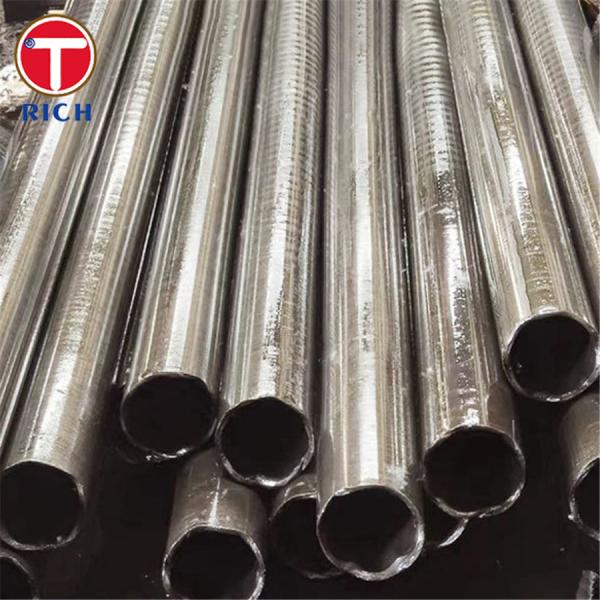

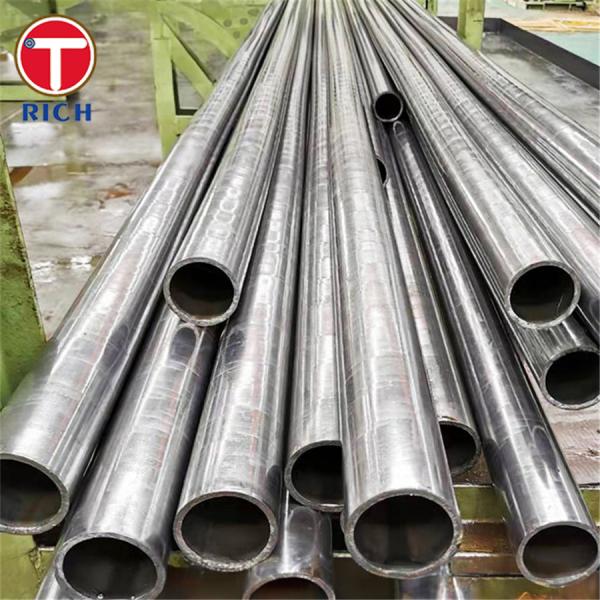

EN 10305-1 Cold Rolled Steel Tube Carbon Seamless Steel Tubes For Hydraulic Cylinders

Introduction

EN 10305-1 Cold Rolled Steel Tube is a standard that specifies the technical delivery conditions for seamless cold-drawn steel tubes of circular cross-section used in hydraulic and pneumatic power systems. These carbon seamless steel tubes are primarily designed for use in hydraulic cylinders due to their exceptional strength and durability.

Material and Specification

The material used in EN 10305-1 Cold Rolled Steel Tube is carbon steel. The seamless tubes are cold-drawn and have a circular cross-section. The dimensions of these tubes are specified as outer diameter (OD) and wall thickness (WT), and are presented in metric sizes. The standard provides various permissible deviations in dimension and form.

Key Features

EN 10305-1 Cold Rolled Steel Tube offers several key features that make it suitable for hydraulic cylinders:

1. High Strength: The carbon steel used in these tubes provides exceptional strength and durability, ensuring reliability and long service life.

2. Seamless Construction: The seamless manufacturing process ensures a smooth interior surface, reducing friction and pressure losses within the hydraulic system.

3. Uniform Wall Thickness: The tubes have uniform wall thickness, guaranteeing consistent performance and optimal load-bearing capacity.

4. Excellent Machinability: The tubes are easy to machine, allowing for precise customization and assembly of hydraulic cylinders.

5. Tight Tolerances: The standard specifies the tolerances for dimensions, form, and mechanical properties, ensuring high precision and quality of the tubes.

Chemical Composition

The chemical composition of EN 10305-1 Cold Rolled Steel Tubes is shown in the table below:

Mechanical Properties

The mechanical properties of EN 10305-1 Cold Rolled Steel Tubes are provided in the table below:

Steel Grade

EN 10305-1 Cold Rolled Steel Tubes are available in various steel grades, including:

1. E235 - This grade offers good weldability and excellent formability, making it commonly used in hydraulic systems.

2. E355 - Known for its high strength and impact resistance, E355 is suitable for heavy-duty hydraulic cylinders.

Application

EN 10305-1 Cold Rolled Steel Tubes are widely used in hydraulic cylinders for various applications such as:

1. Construction Machinery
2. Agricultural Equipment
3. Material Handling Equipment
4. Industrial Machinery
5. Automotive Systems

Possible Alternative Grades

In addition to the mentioned steel grades, there are possible alternative grades available based on specific requirements and regional standards. These alternatives may include:

1. ASTM A519 Grade 1020
2. DIN 2391-2 St52.4
3. JIS G3445 STKM11A

It is essential to consult engineering standards and guidelines to determine the most suitable alternative grade for specific applications.

Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.

Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.

At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
