A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
Specifications
Place of Origin :
Jiangsu China (Mainland)
Brand Name :
WUXI SYLAITH
Certification :
ISO9001 14001 BV TUV PED DNV etc
Model Number :
A192M
MOQ :
1 MT
Packaging Details :
Standard Waterproof Package
Delivery Time :
3~10 days
Payment Terms :
T/T, L/C
Supply Ability :
8000MT/Month
Price :
Negotiable
Application :
Fluid Pipe
Delivery Condition :
Annealed|Normalized|Tempered
Grade :
Grade A|A179|A192|Grade A1
Material :
Carbon Steel
Product Name :
Seamless Steel Tubes
Section Shape :
Round
Standard :
ASTM A192|A192M
Surface treatment :
Oil-dip|Varnish|Phosphating|Passivation|Shot Blasting
Description

A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick

The seamless steel pipe is made of perforated whole round steel, and the steel pipe without weld seam on the surface is called seamless steel pipe.

Product Name

Seamless Carbon Steel Boiler Tubes For High-Pressure Service.

Steel GradeGrade A192
StandardASTM A192, A192M
Out Dimensions12.7mm – 114.3mm
Wall Thickness0.8mm - 15mm
Length

Fixed(6m,9m,12,24m) or normal length(5-12m)

PackingBeveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatmentOil-dip, Varnish, Passivation, Phosphating, Shot Blasting
MarkAs requested
Delivery ConditionAnnealed, Normalized, Normalized and Tempered


Chemical composition

Product

Ttem

Grade

Chemical composition

C

Si

Mn

P.≤

S.≤

Cr

Ni

others

Carbon steel

1

10

0.07/0.13

0.17/0.37

0.35/0.65

0.03

0.03

≤0.15

≤0.30

Cu≤0.25

2

20

0.17/0.23

0.17/0.37

0.35/0.65

0.03

0.03

≤0.25

≤0.30

Cu≤0.25

3

A179

0.06/0.18

-

0.27/0.63

0.03

0.03

-

-

-

4

A192

0.06/0.18

≤0.25

0.27/0.63

0.03

0.03

-

-

-


Mechanical properties

Item

Mark

Tensile property

Hardness

Extension strength Rm Mpa

Lower Yield strength Rel or Rp0.2 MPa

lower Yield strength ReL or Rp0.2 Mpa

Thickness

Thickness

≤16

>16

<5.1

≥5.1

≥

≤

1

10

335~475

205

195

24

-

-

2

20

410~530

245

235

20

-

-

3

A179

≥325

180

35

-

-

4

A192

≥325

180

35

77HRB

137HB


Applications

1. For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2. Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3. Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4. The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5. Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc

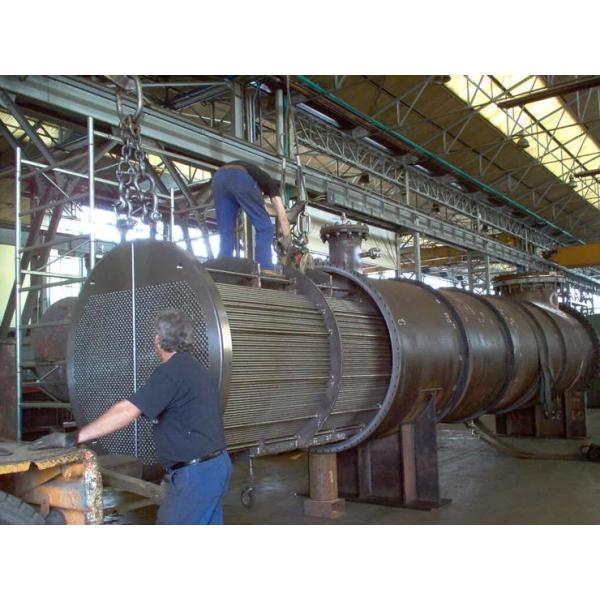

Product Photo

A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick

Quality Control

A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick

Main Certificates
A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
