Round Precision Steel Tube , EN10305-1 EN10305-4 Mechanical Steel Piping

Specifications

Place of Origin :

Jiangsu China (Mainland)

Brand Name :

WX SYLAISHI

Certification :

SGS ISO ROHS

Model Number :

EN10305-1 EN10305-4

MOQ :

1MT

Packaging Details :

standard waterproof package

Delivery Time :

7-10 Days

Payment Terms :

L/C, T/T

Supply Ability :

8000MT/Month

Price :

Negotiable

Product Name :

Precision Steel Tube

Section Shape :

Round

Outer Diameter :

4 - 1000 mm

Tolerance :

±1%

Technology :

Hot Rolled Cold Rolled

Alloy Or Not :

Non-Alloy

Description

Round Precision Steel Tube , EN10305-1 EN10305-4 Mechanical Steel Piping

Product Description:

Welded pipes for conveying water, sewage, gas, air, heating, steam and other low-pressure fluid and other uses. Sizes ERW: 3/4″ thru 26″ up to 1.000″ thick DSAW: 20″ thru 72″ up to 3.000″ thick.

Standard	JIS G3463-2006, JIS G3444-2006, DIN EN 10305, ASTM A182-2001, ASTM A671-2006, API 5CT, BS EN10025
Grade	STPG42, Q235, Q215, STB35, STB42, St52.4, St45-4
Thickness	1mm - 40mm
Section Shape	Round
	5mm - 1200mm
Place of Origin	wuxi.china
Application	fluid pipe,boiler pipe,drill pipe
Technique	ERW
Certification	API
Special Pipe	EMT Pipe
Alloy Or Not	Non-Alloy
Tolerance	±1%
Type	Seamless Steel Pipe
Processing Service	Bending, Welding, Decoiling, Punching, Cutting

Chemical Composition:

Steel grade		Chemical composition, as a percentage by mass
Symbol	Material number	C max.	Si max.	Mn	P max.	S max.
St 30 Si	1.0211	0.10	0.30	<=0.55	0.025	0.025
St 30 Al	1.0212	0.10	0.05	<=0.55	0.025	0.025
St 35	1.0308	0.17	0.35	<=0.40	0.025	0.025
St 45	1.0408	0.21	0.35	<=0.40	0.025	0.025
St 52	1.0580	0.22	0.55	<=1.60	0.025	0.025
The following alloying elements may be added: Nb: <=0,03%; Ti: <=0,03%; V: <=0,05%; Nb + Ti + V: <=0,05%.

Final Supply Conditions:

Designation	Symbol	Description
Cold finished (hard)	BK	Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.
Cold finished (soft)	BKW	The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding).
Cold finished and stress-relieved	BKS	Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
Annealed	GBK	The last cold forming process is followed by annealing in a controlled atmosphere.
Normalized	NBK	The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.

Condition on Delivery:

Steel Grade	BK		BKW		GBK		NBK
Code No.	Tensile Strength N/mm2 min	Elongation at rupture N/mm2 min	Tensile Strength N/mm2 min	Elongation at rupture N/mm2 min	Tensile Strength N/mm2 min	Elongation at rupture N/mm2 min	Tensile Strength N/mm2 min	Elongation at rupture N/mm2 min
St30 Si	400	8	330	12	280	30	290-420	30
St30 Al	400	8	330	12	280	30	290-420	30
St 35	440	6	370	10	315	25	340-470	25
St 45	540	5	470	8	390	21	440-570	21
St 52	590	4	540	7	490	22	490-630	22

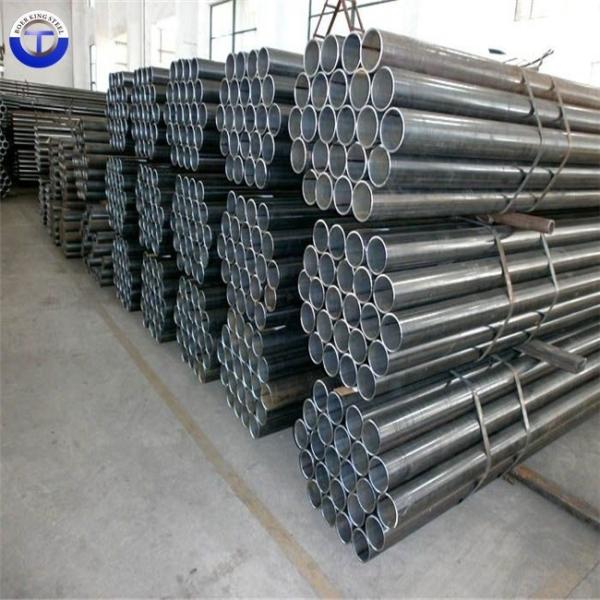

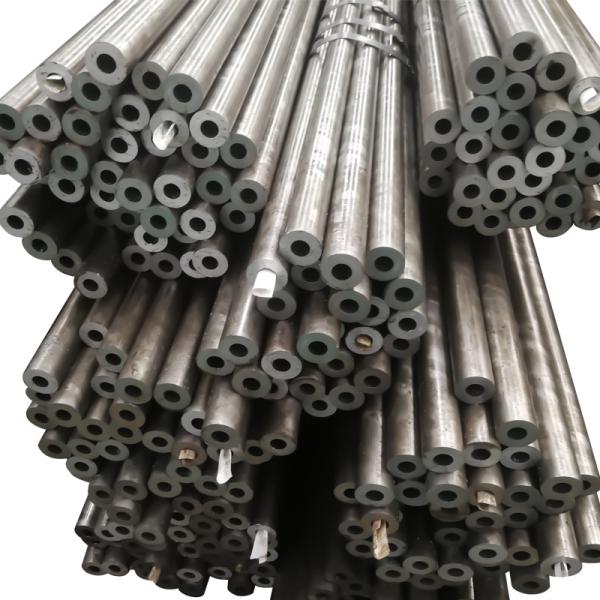

Detailed Photo:

Factroy Pictures:
