EM4469/EM4569 chip cards / EM4469/EM4569 chip 125KHz animal identification
EM4469/EM4569 chip cards / EM4469/EM4569 chip 125KHz animal identification
Specifications
Place of Origin :
China Mainland
Brand Name :
SeabreezeRFID
Certification :
ROHS
Model Number :
HL4662
MOQ :
1000pcs
Packaging Details :
200pcs/box，25boxes/carton
Delivery Time :
Asap
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
500,000pcs/month or Specify the number
Samples : :
Free (If you pay the express charge,Or if you hereafter have goods orders, return the express charge
Description
EM4469/EM4569 chip cards / EM4469/EM4569 chip 125KHz animal identification
EM4469/4569 chip Introduction :
Passive RFID IC with extended reading range is ideal for animal identification
Read/write RFID IC EM4569 features bumped enlarged pads for direct antenna connection to save space and mounting costs;
MARIN, Switzerland–February 15, 2005–EM Microelectronic, an electronic systems company of the Swatch Group, announces the EM4569, a 125kHz, 512-bit contactless identification CMOS RFID IC intended for use in electronic read/write RF transponders. The EM4569 offers versatility and security with several data rate and data encoding options available at a decreased level of power consumption. This high-performance passive RFID IC saves cost and increases reading distance, making it extremely useful for animal identification (ISO 11784/ ISO 11785).
With a significantly larger coil pad size, the EM4569 is the enlarged pad version of the EM4469. The enlarged pads allow for direct antenna connection via bumps deposited on the enlarged pads so the customer can directly solder the wire of the antenna on the EM4569 without the need of PCB support. Such pads also decrease the cost since the IC requires fewer handling operations.
In addition to its consumer-friendly price, the EM4569 has unmatched performance in terms of detection range. "In a recent field trial using long-range animal reader, the EM4569 embedded in an ear-tag format was read at a distance of up to one meter, considerably more than other conventional RFID tags," explains Mougahed Darwish, president of the management board of EM Microelectronic. "Additionally, the EM4569 is compliant with ISO11784/5 and has bi-phase RF/32, making if very functional in the animal world." The EM4569 has already been adopted by several tag manufacturers and is currently in field trials in North America.
For cattle in England, one identification tag is required, allowing each cow to be tracked throughout its life. Many farms there also use a second tag to identify age and medical history. While identification tags are not required by law in the United States, they are a very important management tool. Ear tags provide a safe and more efficient alternative to other forms of branding or marking. EM Microelectronic promotes this technology by introducing products such as the EM4569, which make electronic identification easier and much more cost effective.
The EM4569 chip combines the following features:
512bit EEPROM organized in 16 words of 32 bits
32bit password read/write protection
32bit unique identification number (UID)
10bit customer code
ISO 11784/ 11785 standard compliant
Lock feature convert EEPROM words in read only
Multi-purpose encoding (Manchester, Biphase, Miller, PSK, FSK)
Multi-purpose data rate from 1 up to 32k baud
100 to 150 kHz frequency range
On-chip rectifier and voltage limiter
No external supply buffer capacitor needed
Temperature range: -40℃-+85℃
EM4469/EM4569 chip cards Parameters:
Read and write distance: 0-15cm
Time to read and write: 1-5ms
Working temperature: -20℃-+65℃
Wipe life: > 100,000 times
Storage: > 10 years
Dimension: ISO standard card 85.6×54×0.82mm
Material: PVC/ABS/PET/PETG, 0.13mm copper wire
Encapsulation process: automatic ultrasonic automatic plant line/touch welding
Applications:
Enterprises, Bank, Traffic, Insurance, Super marketing, Parking, School, Library management, Access control, Supply chain management, Securiting, Time and attendance Systems,Animal identification and tracking management,etc.
Aviable Crafts
Printing: Offset Printing,Silkscreen Printing,Thermal printing,Ink-jet printing,Digital printing.
Security features: Laser ablation,Hologram/OVD,UV ink,Optical Variable ink,Hidden barcode/Barcode mask,Graded Rainbow,Micro-text.
Others: Signature panel,Barcode,Serial number,Embossing,Encoding,Die-cut.

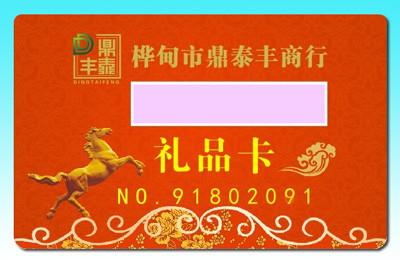

Declare: The showing picture is only for reference of our product.All related to intellectual property rights of trademark are belongs to trademark company.
