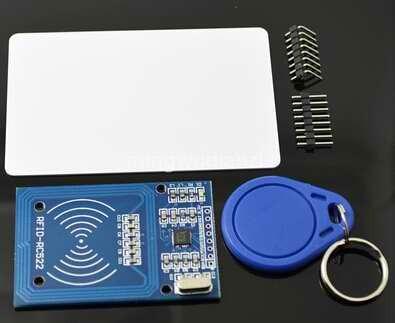

RC522 SPI Write/Read Module for Arduino, RS232/485 Interface
RC522 SPI Write/Read Module for Arduino, RS232/485 Interface
RC522 SPI Write/Read Module for Arduino, RS232/485 Interface
RC522 SPI Write/Read Module for Arduino, RS232/485 Interface
Specifications
Place of Origin :
China Mainland
Brand Name :
SeabreezeRFID
Certification :
RoHS
Model Number :
SM522
MOQ :
1 piece
Packaging Details :
1piece/carton
Delivery Time :
In stock
Payment Terms :
L/C, T/T, Western Union, PayPal, MoneyGram
Supply Ability :
1000pcs/month or Specify the quantity
Add time : :
2014-01-17 10:39:40
Description
RC522 SPI Write/Read Module for Arduino, RS232/485 Interface
Specifications
RC522 chip Introduction
RC522 is applied to 13.56MHz contactless communication highly integrated chip card reader, is for the "Three Tables" application launch of a low-voltage, low-cost, small size and non-contact card reader chip, smart instrumentation and portable handheld devices developed better choice. RC522 using advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation products. RC522 supports Series higher speed non-contact communication, two-way data transfer rates up to 424kbit / s. As a highly integrated 13.56MHz card reader new family of chips, RC522 RC500 and RC530 and there are many similarities, but also have many features and differences. It is between the host communication using SPI mode, helps to reduce connection, reduce PCB board size and cost.
RFID module Introduction
522-AN module adopts RC522 original reader circuit chip design, easy to use, low cost, suitable for equipment development, development of advanced applications such reader users, the need for RF card terminal design / production of the user. This module can be loaded directly into a variety of readers molds. Module uses voltage of 3.3V, through the SPI interface simple few lines can be directly connected to the user any CPU board communication module can guarantee stable and reliable work, reader distance;
Electrical parameters
Item Parameters
Current 13-26mA/DC 3.3V
Idle Current 10-13mA/DC 3.3V
Sleep current <80uA
Peak current <30mA
Operating Frequency 13.56MHz
Support card 1K S50/4K S70, UltraLight, Pro, EV1 D21/D41
Dimensions 40mm×60mm
Environmental Operating temperature -20℃~+80℃
Environment Storage temperature -40℃~+85℃
Relative Humidity 5%~95%
Module Interface SPI Parameters
Data Transfer Rate Max.10Mbit/s
