Specifications
Place of Origin :
China Mainland
Brand Name :
SeabreezeRFID
Certification :
RoHS
Model Number :
SMN5601
MOQ :
1 piece
Packaging Details :
1 piece/carton
Delivery Time :
In stock
Payment Terms :
L/C, T/T, Western Union, PayPal, MoneyGram
Supply Ability :
500pcs/month or Specify the number
Add time : :
2014-01-17 11:23:44
Frequency :
13.56MHz
Communication protocol :
ISO 14443 A/B, ISO 15693
Interface :
UART(TTL) port
Sales range :
Global
Highest annual sales :
750 pcs
Description

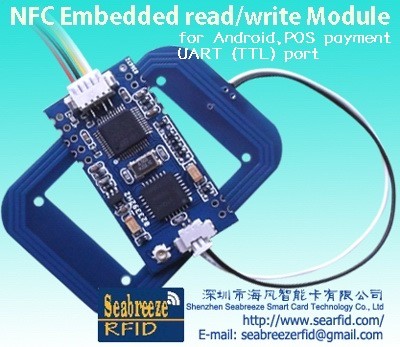

NFC Embedded Read Write Module, UART, TTL interface, for Android, POS payment

Key Features
Compact size, easy integration
DC 5V or 3.3V low consumption optional
Embedding way available with 1.25mm Pitch connector, 2.54mm PIN or Stamp hole
External antenna, connectable by 1.25mm pitch connector or IPX
Compliant with ISO14443 type A, type B standard
Available with R/W NTAG203, NTAG205, NTAG213, NTAG215, NTAG216 tags
Reader mode supports read and write MF1 IC 1K S50, MF1 IC 4K S70, Sony FeliCa, etc.
ISO18092 NFC Peer-to-Peer communication
Testing demo and other SDK files providable
Technical Parameter
Frequency 13.56MHz
Baudrate 9600-115200bit/s(adjustable, default 9600)
Protocol ISO/IEC 14443A ISO/IEC 14443B ISO/IEC 15693
Support card (contactless)
Ntag203, Ntag213, Ntag215, Ntag216;
MF 1K S50, MF 4K S70, Ultralight, MF Pro

AT88RF020, 66CL160S,

SR176, SRIX4K

 I-code 2, TI RFID Tag-it HF-I, EM4135, EM4034
Port UART(TTL)
Power DC 5V or 3.3V(±5%),optional
Current <70mA
Reading range 50~70mm(depends on antenna and tag)
Working temp -10℃~+70℃ (+14℉~+158℉)
Storage temp -20℃~+80℃ (-4℉~+176℉)
Dimension 39mm×19mm×5.8mm

Remark: Full SDK files will be providable for customers' second development.

External Antenna:
Connector: 1.25mm Pitch or IPX
Optional Size: 20×30mm, 20×40mm, 35×50mm, 86×54mm, 80×80mm, 86×54mm or customizable
Typical Application
Handheld Data Terminal
Access controller
One-card System
POS payment device
Smart phones
Android device
PIN Drawing
