EM4222/EM4223-UHF tag Inlay / UHF Read-only Logistics tag Inlays
EM4222/EM4223-UHF tag Inlay / UHF Read-only Logistics tag Inlays
Specifications
Place of Origin :
China Mainland
Brand Name :
SeabreezeRFID
Certification :
RoHS
Model Number :
BY7906
MOQ :
1000pcs
Packaging Details :
5,000pcs/roll, 2 roll/carton
Delivery Time :
Asap
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
200,000pcs/month or Specify the number
Samples : :
Free (If you pay the express charge,Or if you hereafter have goods orders, return the express charge
Add time : :
2014-01-12 18:26:19
Description

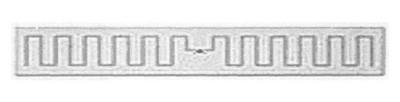

EM4222/EM4223-UHF tag Inlay / UHF Read-only Logistics tag Inlays
The EM4222/EM4223 is a simple, read-only chip designed for low-cost tags. It carries a 64-bit serial number that is programmed at the factory. Up to 120 tags can be read each second, and the tags have a read range of 2-20 meters (6-feet).
EM4222 features:
Manufacturers to write 64-bit unique ID number
High speed: 256k bits
Frequency independent: can be used in the 869MHz/902-928MHz/2.45 GHz
Chip has the oscillator and rectifier
Low voltage operation: as low as 1.0V
Low power consumption, low cost benefit
Working temperature: -40°C-+85°C (-40°F-+185(°F)
EM4223 characteristics
Interface compatible with ISO 18000-6A
Support Auto-ID center defined EAN, UCC and EPC data structure
Support the Fast Counting Supertag mode
128-bit memory user permissions are defined
According to the Application of ISO Family Identifier (AFI) group
To quickly determine the user data (do not need to read the inventory in advance)
Frequency independent: can be used for 862-870MHz/902-950MHz/2.45 GHz
Chip has the oscillator and rectifier
Low voltage operation: as low as 1.0V
Low power consumption, low cost benefit
Working temperature: -40°C-+85°C (-40°F-+185(°F)
Typical application: can be perfectly applied to long distance, high speed object recognition system. Supply chain management (SCM), object tracking and tracing, flow, flow, logistics management, asset identification management, the right to use the patent recognition
