Specifications
Brand Name :
SeabreezeRFID
Model Number :
B692
Certification :
RoHS
Place of Origin :
China Mainland
MOQ :
500pcs
Price :
$0.15~0.30 per cards
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500,000pcs/month
Delivery Time :
Asap
Packaging Details :
200pcs/box，25boxes/carton
Samples : :
Specified
Add time :
2014-04-12 12:07:19
Communication protocol :
ISO/IEC 15693
Operating frequency :
13.56MHz
Wipe life :
> 100,000 times
Data storage :
> 10 years
Material :
PVC, ABS, PET, PETG, Paper
Description

I CODE 2 chip electronic tags inlay cards, I CODE SLI/SL2 ICS20 inlay cards, HF inlay cards

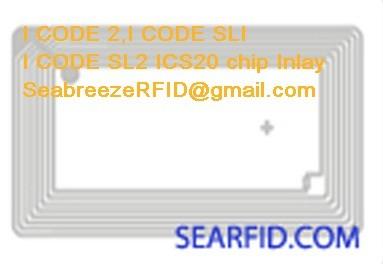

I CODE 2 electronic tag card is a card made of I CODE 2 inlay. Can be used to as a long-distance applications design. With functions of conflict prevention, allowed in antenna field at the same time operating in more than a tag cards.
I CODE 2 is the working frequency of 13.56 MHz contactless smart tag chip, chip ISO15693 standard protocol, the chip is mainly for package, transportation, aviation baggage, rental service, retail and logistics supply chain management system application and design a series of RFID chip.
I CODE SLI RF Interface (ISO 15693)
Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 1.5m (depending on antenna geometry)
Operating frequency: 13.56MHz (ISM, world wide licence free available)
Fast data transfer: up to 53 kbit/s
High data integrity: 16 Bit CRC, framing
True anticollision
Electronic Article Surveillance (EAS)
Application Family Identifier (AFI) supported
Data Storage Format Identifier (DSFID)
Additional fast anticollision read
Write distance equal to read distance
EEPROM
896 bits for user data, organised in 28 blocks of 4 byte each
User definable access conditions for memory blocks 0 to 27
Data retention of 10 years.
Write endurance 100,000 cycles
Security
Unique identifier for each device
Lock mechanism for each block (write protection)
Lock mechanism for DSFID, AFI, EAS

Main Technical Parameters
Item Parameters
Communication protocol ISO/IEC 15693
Memory capacity 1024bit, 32 partitions, the only ID 64bit serial number
Operating frequency 13.56MHz
R/W distance 1.5m
Baud rate 53kbit/s
R/W time 1~2ms
Working temperature -20℃~+85℃
Wipe life > 100,000 times
Data storage > 10 years
Card size 85.5×54×0.76mm, or custom specifications
Material PVC, ABS, PET, PETG, Paper
Card weight 6.2g

Typical applications: school management, bus stored-value cards, highway tolls, logistics, car parks, community management,etc.

Aviable Crafts
Printing: Offset Printing, Silkscreen Printing, Thermal printing, Ink-jet printing, Digital printing.
Security features: Watermark, Laser ablation, Hologram/OVD, UV ink, Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow, Micro-text.
Others: Chip data initialization/Encryption, Personalized magnetic stripe programed, Signature panel, Barcode, Serial number, Embossing, DOD code, NBS convex code, Die-cut.

Competitive Advantage
The best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.
I CODE 2 chip electronic tags inlay cards, I CODE SLI/SL2 ICS20 inlay cards, HF inlay cards

Declare: The showing picture is only for reference of our product. All related to intellectual property rights of trademark are belongs to trademark company.
