ISO11784, ISO11785 standard Animal electronic ear tag reading Module, FDX-B Animal tag reading Module
ISO11784, ISO11785 standard Animal electronic ear tag reading Module, FDX-B Animal tag reading Module
ISO11784, ISO11785 standard Animal electronic ear tag reading Module, FDX-B Animal tag reading Module
ISO11784, ISO11785 standard Animal electronic ear tag reading Module, FDX-B Animal tag reading Module
Specifications
Brand Name :
SeabreezeRFID
Model Number :
SM-WL134R
Place of Origin :
China Mainland
MOQ :
1 piece
Price :
$10.5~12.0 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5,000 pieces per month
Delivery Time :
Sample 8 business days sent to your office
Packaging Details :
PCB
Add time :
2017-07-07 09:21:41
Protocol standard :
FDX-B (ISO11784, ISO11785)
Operating frequency :
134.2KHz
Communication interface :
TTL
Working mode :
Read-only
Identification distance :
3~15cm
Sample :
Specified
Description
ISO11784, ISO11785 standard Animal electronic ear tag reading Module, FDX-B Animal tag reading Module

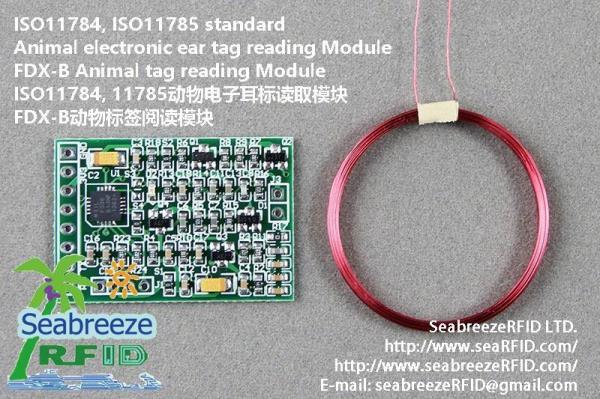

The SM-WL134R embedded read-only module is a 134.2KHz low frequency animal ID tag reading module developed by SeabreezeRFID, which supports the animal tags and compatible cards conforming to ISO 11784/ISO11785 standard protocol. The embedded read module through the UART communication, the user simply through the UART to send a simple command to complete the reading of animal tag information, without having to understand the complex protocol. Small footprint, simple operation and ultra-low power consumption makes the SM-WL134R embedded read module very suitable for embedded in PDA and other handheld devices.

Specifications and Parameters
Item​ Parameters
Protocol standard FDX-B (ISO11784, ISO11785)
Operating frequency (Modulation mode) 134.2 KHz
Communication interface TTL, easy to connect with the microcontroller or embedded system
Working mode read-only
Identification distance 3~15CM (depending on the structure of the antenna and the use of the environment)
Operation EM4150 and EM4305, HITAG-S and other animal formats compatible chip
Working voltage 2.7~3.6V
Operating current Standby current: 1.6mA
Operating current: 70mA
Storage temperature -40℃~+90℃
Operating temperature -20℃~+50℃
Overall dimensions 22*32mm

Features
Support ISO11784, ISO11785 standard
FDX-B format output
Support compatible with EM4150 and EM4305, HITAG-S and other animal formats compatible card
2.7~3.6V low power consumption
Small size, simple operation
Applications
Pigs, cattle, sheep, donkeys and other livestock identifiers, product traceability, handheld devices, can also be used for special security.
