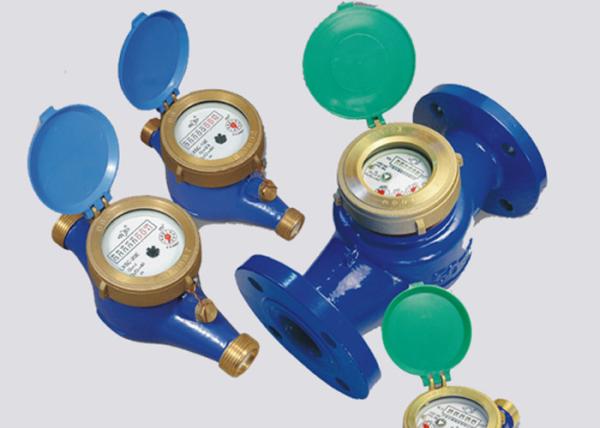

DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement
DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement
Specifications
Brand Name :
Purescience
Model Number :
LXSG-15
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
500 pieces
Price :
USD 5 - USD10
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2,800,000 sets per year
Delivery Time :
4-5 weeks
Packaging Details :
unit pack by brown box, pallet
Product name :
multi jet water meter dry dial
Port size :
DN 15 - DN50
Port connect :
thread or flange
Remote reading :
pulse emitter or photo electric reading
Type :
Dry dial
Accuracy :
+ / - 2% @ cold water
Operation pressure :
150 psi / 1.0 Mpa
Material :
brass
Function :
Totalizer , flow rate
Description

Multi jet water meter for residential and industrial applications of water consumption measurement DN15 - 50

The multi jet water meter, is made of brass, plastic or iron body. Available in sizes 15mm to 50 mm for residential application, and DN 50 to DN 300 for commerical and industrial applications. It's for cold water volumetric measurement, or hot water up to 90 ℃.

The optional remote reading: pulse emitter (reed switch), or photo electric reading.

Product Features:

  • The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
  • R value is R80 / 100 / 125 / 160 as requested
  • Suitable for both cold and warm water applications
  • Replaceable meter inserts available
  • Good readability even at extreme operational conditions
  • Optionally retrofittable with pulse contactors

Work condition:

  • Water temperature:0.1℃～40℃ for cold water
    30℃～90℃ for hot water meter.
  • Water pressure: ≤1.0 Mpa

Remarks:

  • Measuring accuracy conform to ISO 4064 class B standard..
  • Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

Flow error curve

DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement

Flow curve

DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement

Data sheet

Description Unit Hydraulic data and dimensions
Nominal size mm(inch) DN15 (1/2") DN20(3/4")
Overload flow rate (Qs) m3/h 2 3
Permeanent flow rate (Qp) m3/h 1 1.5
Transitional flow rate (Qt) l/h 80 120
Minimum flow rate (Qmin) l/h 20 30
Min reading l 0.05 0.05
Max reading l 99999.9999 99999.9999
Max work pressure MPa 1.6 1.6
Pressure difference at Qs Mpa <0.1 <0.1
L mm 165 190
I mm 245 290
H mm 135 135
h mm 36.5 36.5
B mm 94 94
D inch G3/4B G1B
d inch R1/2 R3/4
weight with connections kg 1.49 1.75
without connections 1.29 1.45

Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line

DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement

Base water meter

DN15 - 50 Multi Jet Water Meter For Residential And Industrial Of Water Consumption Measurement
