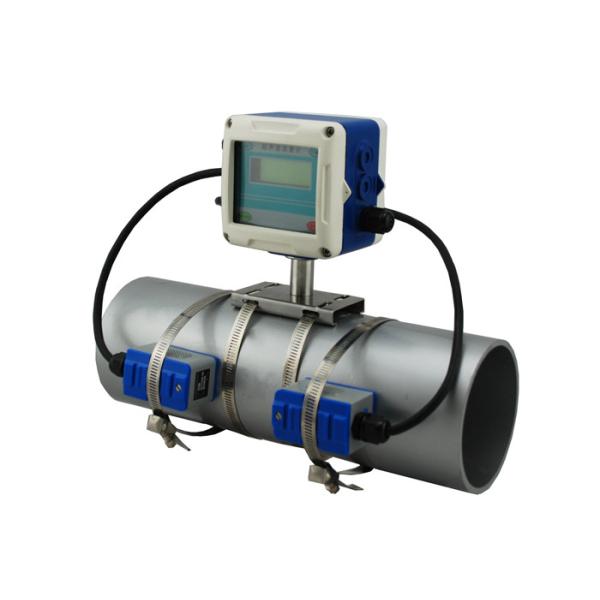

Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
Specifications
Brand Name :
Purescience
Model Number :
YE-TUF2000FC
Certification :
ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Place of Origin :
China
MOQ :
5 sets
Price :
USD150-USD900
Supply Ability :
500 sets per month
Delivery Time :
3 weeks
Packaging Details :
carton
Product name :
Doppler flow meter
Principle :
Transit time
Accuracy :
+ / - 1%FS
Operation :
Key boards
Output signal :
4-20 mA / OCT pulse / relay
Input :
3-way 4-20 mA (temperature, pressure and level)
Communication :
RS485 / Modbus
Media temperature :
-30 - 160 ℃
Media turbidity :
< 10000ppm
Velocity :
0-7 m/s
Description

Doppler Fixed clamp on ultrasonic flowmeter by sound wave to determine velocity of waste water | mining | metals

Generals

The transit time ultrasonic flowmeters, that the fluid to be measured, which can adequately conduct ultrasonic waves, the flowmeter won't measure in case the ultrasonic waves cannot penetrate the flow stream between the transducers. Vice versa, ultrasonic waves must be able to penetrate the fluid for Doppler flowmeters to operate accurately. When the fluid is relatively opaque and does not penetrate the fluid, Doppler flowmeters tend to measure the velocity of the fluid at or near the pipe wall, which can cause significant measurement error and/or cause the flowmeter to fail.

Data sheet

Contents

Parameter and performance

Convertor

Work Principle

ultrasonic flow meter, Transit-time

Precision

1%

Operation

key button, 4

signal output

single channel 4-20mA, resistance 0-1K , accuracy 0.1%

single way OCT pulse (Pulse width: 6-1000ms, default: 200ms)

single channel relay output

signal input

Tri way 4-20mA, accuracy: 0.1%, (temp., pressure, level)

the temperature transducer Pt100, heat / energy measurement

Interface

Galvanic isolation RS485, software upgrade by PC, MODBUS
Special cable

Paired cable in twisted, 50m; RS485, transmission distance 1000m or above.

Port connect

Material

carbon steel, stainless, cast iron, copper, cement, PVC, aluminum, etc

Diameter

DN15 - DN6000 mm
Pipe straight

the upstream: 10xDia, the downstream: 5xDia, and 30xDia from pump

Measurement

Liquid media

Single sonic wave transmittable liquid, such as municipal water, cooling

water, seawater water, waste water, pure water, Sewage with particle content, such

as oil, crude oil, lubrication oil, diesel oil, fuel oilChemicals, petrochemicals,

heating, ventilation ,air conditioner, power plants,

Temperature

-30-160℃

Turbidity

Up to 10000 ppm and less bubble

Flow velocity

0-7 m/s

Work environment

Temperature

Convertor: -20-60 ℃, Transducer: -30-160℃

Humidity

Convertor: 85%RH, Transducer: submersible up to depth 2m

Power supply

DC8-36V or AC10-30V / 1.5W

Dimension

Convertor: 95*95*35mm

How to use:

The ultrasonic flowmeters are popularly used in the measurement of the velocity of liquids that allow ultrasonic waves to pass, such as water, molten sulfur, cryogenic liquids, and chemicals. The transit time designs are also available to measure gas and vapor flow. Since fluids that do not pass ultrasonic energy, such as many types of slurry, limit the penetration of ultrasonic waves into the fluid. For the doppler ultrasonic flowmeters, the opaque liquids can limit ultrasonic wave penetration too near the pipe wall, that can decrease accuracy and/or cause the flowmeter to fail to measure. The transit time ultrasonic flowmeters may fail to operate when an opaque liquid weakens the ultrasonic wave to such an extent that the wave does not reach the receiver.

Metering Diagram

Flow measurement Heat measurement

Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water

Reference chart

Type

Model

Pipe dia (mm)

Temperature

Dimension (mm)

Clamp on

TS-2

DN15-100

-30-90℃

45x25x32

TM-1

DN50-700

-30-90℃

64x39x44

TL-1

DN300-6000

-30-90℃

97x54x53

Clamp on (high temperature)

TS-2-HT

DN15-100

-30-90℃

45x25x32

TM-1-HT

DN50-700

-30-90℃

64x39x44

TL-1-HT

DN300-6000

-30-90℃

97x54x53

Insertion type

TC-1

DN80-6000

-30-90℃

190x80x55

TC-2(lengthen)

DN80-6000

-30-90℃

335x80x55

Pipe type

G3 (π type)

DN15-25

-30-160℃

G2

DN32/DN40

-30-160℃

G3

DN50-6000

-30-160℃

Optional temperature transducer

Specification

Model

Dia

Temp.

Water cut

Accuracy

Clamp-on temp. transducer Pt100

CT-1

>DN50

-40-160℃

No

100+ 0.8℃

Insertion temp. Transducer Pt100

TCT-1

Yes

Insertion temp. Pt100 with pressure

PCT-1

No

Insertion temp.Pt100 for small pipe D

SCT-1

<DN50

Yes

Industries

  • Chemicals
  • Petrochemicals
  • Oil & Gas
  • Heating, Ventilation & Air Conditioning (HVAC)
  • Power Plants
  • Water treatment

Applications

  • Metering of cooling water
  • Demineralisedwater
  • Control of batching and blending operations
  • Mass flow measurement
  • Allocation measurement
  • District heating
  • Irrigation
  • Energy measurement

Model Selection

I

Model

YF

Electromagnetic flowmeter

TF

Turbine

VF

Votex

LX

Vane wheel

T

Ultrasonic

E/F display mode

E: compact/local display, F: remote display

Pipe Dia

Type (mm)

xxxx

10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300,

400, 500, 600, 800, 1000

Code

Accuracy

1

+ 0.5% FS

2

+ 1.0% FS

3

+ 0.2% FS

Code

Type

N

Converter: 12 / 24 VDC, pulse output

A

Transmitter: 24VDC, 4-20mA outpt

B

Intelligent, Lion battery, no local display

G

Smart, local display, 4-20mA output

C1

Smart, local display, RS485

C2

Smart, local display, HART

Code

Type

S

Carbon steel housing

L

Stainless steel housing

G

High pressure housing

HL

316L electrode

HTi

Titanium electrode

HTa

Tantlum electrode

HC

Hastelloy-C electrode

L1

Liquid media

L2

Gas media

P

Pressure compensation

T

Temperature compensation

PT

Pressure&Temp. Compensation

F

PTFE liner

X

Rubber liner

Sample: IYF-E-0100-1-C1-S-HL-L1-F,

Magmeter, local display, Dia: 100mm, + 0.5%FS, carbon steel housing, smart, 4-20mA outpt,

RS485, 316L electrode, liquid media meter, PTFE liner

Competitive Advantage:

  • Compliance to international standards: ISO9001-2008 / GB/T19001 / MC00000-044/507
  • CE approval
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Calibration

Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water

Work shop

Doppler Fixed Clamp On Ultrasonic Flow Meters By Sound Wave To Determine Velocity Of Waste Water
