Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
Bottom feed multi Bag Filter Housings for alcohol recycle tower 3200L
Specifications
Brand Name :
Purescience
Model Number :
JH800
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10 pieces per month
Delivery Time :
6-8 weeks
Packaging Details :
wooden pallet
Product name :
Bottom feed multi bag filter
Model :
JH800
Tower capacity :
3200L
Tower body height :
7500mm
Condensing area :
45m2
Cooling area :
8m2
Concentration :
>90%
Recovery capacity :
600 kg/h - 620kg/h
Description

Bottom feed multi bag filter vessels for alcohol recycle tower 3200L

Specifications:

  • Material of construction: 304ss / 316L
  • Tower volume: 640L - 3200L
  • Tower height: 6000mm - 7500mm
  • Condensing area: 5m2 - 45 m2
  • Cooling area: 1 - 8 m2
  • Heat exchange area: 1.5 - 26m2
  • Recovery capacity: (kg/h): 45 kg/h to 620kg/h
  • Recovery concentration: >90%
  • Packing stuff material: ceramic or SS moire packing material
  • Vessel type: outside

Description:

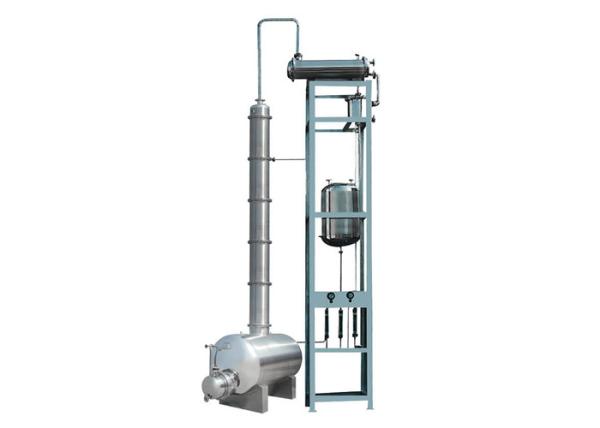

The alcohol recycle tower is consisted of six parts: tower kettel, tower body, condenser, cooler, buffer and high-position storage container, suitable for diluted alcohol recycle in such industries as pharmacy, food, light industry and chemicals. The wet part of the device and the material is made of SUS304 stainless steel, with high corrosion resistance and the advantages of energy saving, pollution control, low manufacture cost and high efficiency. The device can vaporize the diluted alcohol of 30℃ to 95℃ , The residue discharge meets the request to pollution control. . The device adopts high efficient stainless ripple filling. The part contacting the material is made of the stainless steel, compliance to GMP standard.

Technical data sheet:

Parameters JH200 JH300 HJ400 JH500 JH600 JH800
Tower capacity ( L ) 640 1220 1450 2300 2500 3200
Tower body height ( mm ) 6000 7000 7000 7000 7500 7500
Condensing area ( ㎡ ) 5 9 12 18 25 45
Cooling area ( ㎡ ) 1 1.5 2 4 6 8
Heat exchange area ( ㎡ ) 1.5 4 6.5 10 15 26
Recovery capacity ( kg/h ) 45 -50 90 -100 150 -160 230-250 350-400 600-620
Recovery concentration ( % ) > 90%
Packing material Ceramic or SS moire packing material
Vessel type Outside
Dimensions L ( mm ) 2300 2600 2800 3000 3500 4200
Dimensions D ( mm ) 700 800 1000 1200 1400 1800
Dimensions H ( mm ) 7300 7500 9000 9000 10000 14000

Applications:

Contracting and recycling the medicine / pharmaceuticals and alcohol sediment.

Competitive advantage

Professional skills, high-tech equipment ensure we can provide the best and high quality products.

Our compact work process and years of professional experience, enable us to offer you reasonable

price and perfect after sale service
