Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Downflow filter FRP Pressure Tanks Head 2.5 NPSM inlet / outlet
Specifications
Brand Name :
Purescience
Model Number :
JD101
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
carton

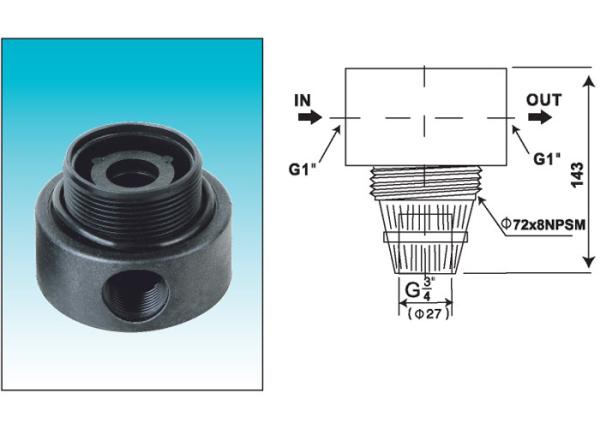

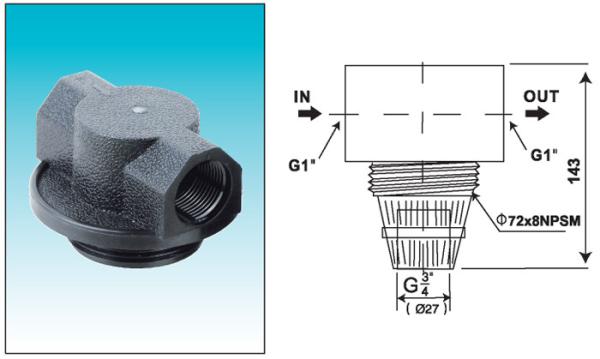

Product name :
in & out tank head JD101
Thank head Dia :
2.5“NPSM thread
Inlet / outlet port size :
G 1"
Riser pipe Dia :
3/4"
Riser connect port :
Dia. 72mm x 8NPSM
Material of construction :
ABS / PP
Description

In out tank heads for downflow filter applications Head 2.5"NPSM inlet/outlet 1" Riser 3/4"

Specification

Model No. Serial No. Suitable tank Diameter (inches/mm)
JD101 XN-1-3/4 6" - 16" ( Dia. 150mm - 400mm )
JD102 XN-1-1 6" - 16" ( Dia. 150mm - 400mm )
JD103 XN-2-0 6" - 16" ( Dia. 150mm - 400mm )
JD104 XN-6-3/4 6" - 16" ( Dia. 150mm - 400mm )
JD109 XN-6-1/2 6" - 16" ( Dia. 150mm - 400mm )
JD110 XN-7-1/2 6" - 16" ( Dia. 150mm - 400mm )

Product description

The in-out tanks heads are designed for downflow filter applications or upflow PH neutralization. They're molded out of a rugged thermoplastic. The 1" tank heads is fully ported to provide maximum flow rates. It's incorporated a standard 2.5" tank connection and features parallel inlet and outlet ports to easily adapt to standard plumbing connections.
