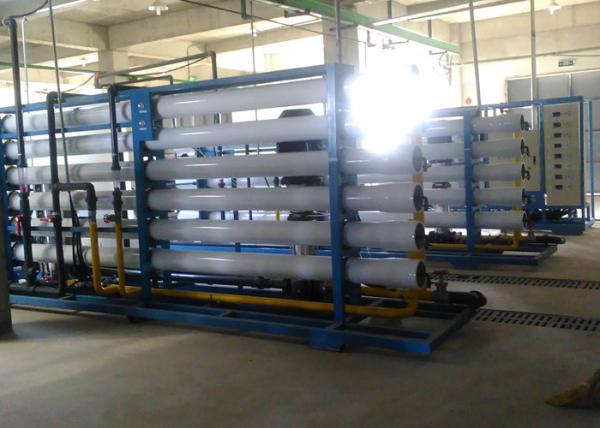

Air flotation waste water recycling systems for effluent and industrial paint
Air flotation waste water recycling systems for effluent and industrial paint
Air flotation waste water recycling systems for effluent and industrial paint
Air flotation waste water recycling systems for effluent and industrial paint
Specifications
Brand Name :
Purescience
Model Number :
ETP-40
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per monthy
Delivery Time :
6-8 weeks
Packaging Details :
wooden pallet
Pretreatment :
Air flotation / DAF
Solid removal :
Sand filter
Turbidity reduction :
UF / Ultrafiltration
Membrane system :
Reverse osmosis
Capacity range :
up to 2000 m3/day
Secondary sedimentation tank Method 1 :
Immersion ultrafiltration
Secondary sedimentation method 2 :
MBR
Flow rate :
40 m3/h
Description

Waste water recycling treatment for effluent water treatment and industrial paint waste water reuse 40m3/h

Typical process flow chart

Air flotation waste water recycling systems for effluent and industrial paint

Technical description about sewage water purification

The wastewater contains both water / liquids and solids impurities of various sorts and origins, sewage purification are designed to remove as much as possible or needed of the solids, other obstructions, and biological and chemical contaminants.

The main pretreatment stages are usually are:

  • Pretreatment: screening and removal of solids (mainly inorganic solids) from the wastewater, sometimes also by sedimentation. After this grit removal is next.
  • Primary treatment: mainly done by sedimentation in large basins or tanks, this separates sludge and other materials such as fat from the wastewater. The primary treatment stage of sewage purification is complex, has a lot of methods and is the longest.

Sewage water purification methods:

  • Anaerobic or aerobic digestion of contaminants – mainly for sludge.
  • Constructed wetlands that have plants that oxygenates the water and absorbs toxins.
  • Sedimentation and oxygenation lagoons
  • Incineration of treated sludge.
  • Producing fertilizers from treated sludge.
  • Filter and/or oxidizing beds.
  • Nutrient, Nitrogen, Phosphorus removal

Waste water purification for recycling use Sample1 - 100m3/h

Untreated Raw water chemical analysis data

No. Description Unit Value
1 Temperature ℃ 25
2 PH 6 - 9
3 COD(CR) mg/L < 100
4 CONDUCTIVITY µs/cm < 6000
5 TDS mg/L < 3000
6 Chroma times < 70
7 SS mg/L < 60
8 Turbidity NTU < 20NTU
9 Fe mg/L < 0.03
10 Mn mg/L < 0.05
11 Oil mg/L <0.05

Treated waste water for reuse.

Competitive advantage:

Years of experience and professional engineers in the industry.
