Specifications
Brand Name :
Purescience
Model Number :
JGM-20
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
500 pieces per month
Delivery Time :
4-6 weeks
Packaging Details :
wooden box
Product Name :
Industrial agitator JGM-20
Motor :
0.25KW / 0.37KW / 0.55KW / 0.75KW / 1.5KW
Protection :
IP55 (optional explosion proof)
Shaft length :
1000mm - 1500mm
Impeller Dia :
200mm - 1200mm
Voltage :
380V / 50HZ / 3PH
Material :
SS304 / 316 / 316L / Q235 / Ti
Max mixing capacity :
10000L (dilute) / 5000L (dense)
Anti-corrosion option :
None / Rubber liner / PTFE liner
Description

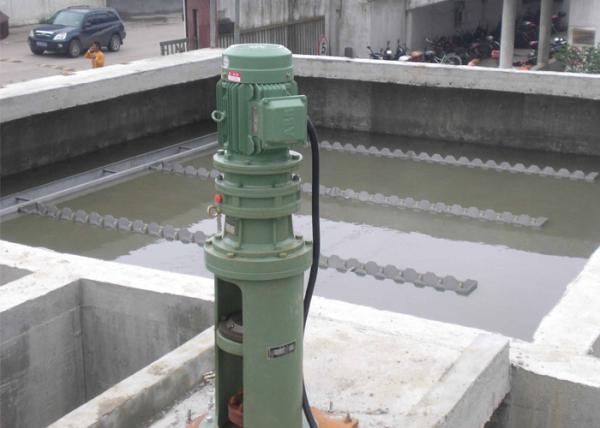

Industrial waste water treatment mixers for flash rapid mixing and coagulant mixing 0.25kw to 1.5kw

Specifications:

Model Motor
(kw)
Reducion
ratio
RPM Shaft
L (mm)
Shaft
Dia.(mm)
Bi-impeller
diameter
A
(mm)
B
(mm)
PD
(mm)
D
(mm)
Z x N
(mm)
Mixing
Capacity (L)
JGM20-25-9 0.25 1:9 167 1000 30 200 261 392 210 250 4xΦ12 1300-600
JGM20-25-11 1:11 136 250
JGM20-25-17 1:17 88 350
JGM20-25-29 1:29 52 450
JGM20-25-35 1:35 43 500
JGM20-25-43 1:43 35 600
JGM20-37-9 0.37 1:9 167 1200 30 300 261 410 210 250 4xΦ12 2500-1200
JGM20-37-11 1:11 136 350
JGM20-37-17 1:17 88 400
JGM20-37-29 1:29 52 600
JGM20-37-35 1:35 43 700
JGM20-37-43 1:43 35 800
JGM20-55-11 0.55 1:11 136 1300 30 400 261 410 210 250 4xΦ12 3500-1800
JGM20-55-17 1:17 88 450
JGM20-55-29 1:29 52 650
JGM20-55-35 1:35 43 750
JGM20-55-43 1:43 35 850
JGM20-55-59 1:59 25 950
JGM20-75-11 0.75 1:11 136 1500 35 400 261 415 210 250 4xΦ12 5000-2500
JGM20-75-17 1:17 88 550
JGM20-75-29 1:29 52 700
JGM20-75-35 1:35 43 800
JGM20-75-43 1:43 35 900
JGM20-75-59 1:59 25 1000
JGM20-150-11 1.5 1:11 136 1500 35 500 301 460 260 290 8xΦ12 10000-5000
JGM20-150-17 1:17 88 600
JGM20-150-29 1:29 52 800
JGM20-150-35 1:35 43 900
JGM20-150-43 1:43 35 1000
JGM20-150-59 1:59 25 1200

Description

The Water and wastewater mixers are critical components of the multi-step process of water and wastewater treatment. Water treatment requires precise control at each stage in its process – from rapid flash mixing to polymer addition. This control requires specific wastewater mixers designed by engineers focused on this process and industry. We're rich of this product and application knowledge with a process guarantee unlike any other water or wastewater mixer manufacturer.

Features:

  • Variety of impellers upon the specific application requirement
  • The tailer made agitators for various mixing solution
  • The right angle, parallel shaft, gear reduced and direct driving motors
  • Different sealing options: gland, single mechanical seal, double mechanical seal, cartridge seal, etc.

Applications for water and waste water treatment mixers

  • Chemical Addition
  • Chemical Storage
  • Rapid Mixing
  • Flash Mixing
  • Coagulant Mixing
  • Flocculation
  • Activated Carbon Mixing
  • Slurry Mixing
  • Polymer Addition
  • Flocculation
  • Equalization & Neutralization
  • Anoxic Dentrification
  • Anaerobic Digestion
  • Chlorination
Competitive advantage
We can supply all types of industrial agitators, which are used for different applications. These industrial agitators are specially designed with the help of helical geared motors that give better efficiency as compared the traditional worm gear box. Our mixers are available in different sizes ranging from 0.25KW to 22KW. We also provide different type of agitators for different application. The range of our agitators are made from stainless steel (SS304 / 316L ), mild steel, alloy as requred.
