High pressure pump sea water reverse osmosis plant 2400 m3 / day
High pressure pump sea water reverse osmosis plant 2400 m3 / day
Specifications
Brand Name :
Purescience
Model Number :
SWR-I700
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or LC, D/A
Supply Ability :
5 pcs per month
Delivery Time :
60 working days after receipt of payment
Packaging Details :
Container or wooden pallet
Product Name :
Seawater reverse osmosis systems
Production capacity :
2400m3/hour
Feed TDS :
Up to 38000 ppm
Operation pressure :
700-1000 psi
Pressure exchange energy recovery :
PX / PI (above 90m3/day)
Permeate TDS :
<500 ppm
High pressure pump :
Super duplex
Skid frame :
Carbon steel
Description

High pressure pump Seawater RO Plant for seawater desalination 750 m3 / day

1. Operation Specifications:

Feed TDS

10,000-42000 ppm

Feed temperature

2-40℃

Feed PH

3-11

Operation pressure

600-1000 psi / 4-6.5 Mpa

Desalination rate

>98%

Permeate water salinaty

<500 mg/L

Capacity

500-750 m3/day

Electricity

380V/50HZ/3PH, other volt please specify upon order

Power

95 Kw

Tonnage electricity consumption

3.5 Kwh/T

Feed water pressure

40-80 psi / 0.1-0.3Mpa

2. Description:

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through.
Seawater Reverse Osmosis (SWRO) is a reverse osmosis desalination membrane process that has been commercially used since the early 1970s. The typical single pass SWRO system consists of the following components:

  • Intake: well or open water
  • Pre-treatment: Filtration and chemical dosing
  • High-pressure pump: to achieve the needed pressure

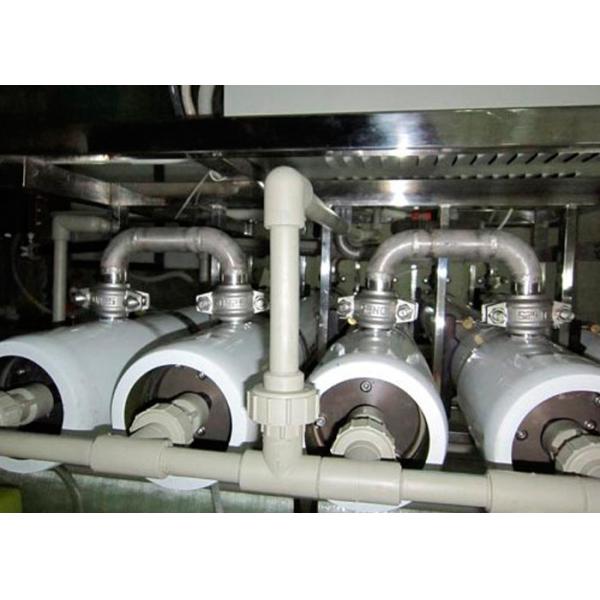

  • Membrane assembly: to perform the desalination process
  • PH adjustment: to adjust the alkalinity or acid level
  • Disinfection: to prevent any bacterial or organic growth
  • Experience in manufacture and supply hundreds of seawater desalination plants with feed water TDS up to 45,000 ppm.

High pressure pump sea water reverse osmosis plant 2400 m3 / day

​​3. Applications

Island-based business

Coastal developments

Work boats

Villages & cities

Hotel and resorts

Fish processing plants

Cargo ships

Seaside work sites

Seaside villas

Oil tankers

4. Competitve advantage

Seawater RO systems are usable anywhere from yachts to municipalities. It’s important to choose correct

materials of construction to handle seawater (which is highly corrosive). We materials such as Duplex

SS 2205, SS 2207 or Monel, to guarantee a longer operating life and less maintenance.
