Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Stripping gas three lobe roots blower 11kw Port size DN100 100mm
Specifications
Brand Name :
Purescience
Model Number :
LBSR100
Certification :
ISO9001/SGS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/P
Delivery Time :
2-3 weeks
Packaging Details :
wooden case
Model :
LBSR80
Product name :
Tri-lobe Roots blower
Port size :
80mm DN80
Silencer :
Horizontal , vertical
Connect :
coupling , belt
Application :
pressure roots air blower
Description

Stripping gas Roots blower for non corrosive gas convey 98kpa 11kw Port size 100mm

Specifications:

Model Speed
RPM		 Unit Pressure data
kpa 19.60 29.40 39.20 49.00 58.80 68.60 78.40 88.20 98.00
2000 3000 4000 5000 6000 7000 8000 9000 10000

LBSR100

 1250 Q (m3/min) 5.33 5.24 5.15 5.04 4.92 4.79 4.64 4.49 4.32
N (kw) 3.00 4.00 5.50 7.50 7.50 11.00 11.00 11.00 11.00
1450 Q (m3/min) 6.29 6.19 6.08 5.95 5.81 5.66 5.49 5.31 5.12
N (kw) 4.00 5.50 7.50 7.50 11.00 11.00 11.00 11.00 15.00
1650 Q (m3/min) 7.28 7.16 7.04 6.89 6.74 6.56 6.37 6.17 5.95
N (kw) 5.50 5.50 7.50 11.00 11.00 11.00 15.00 15.00 15.00
1850 Q (m3/min) 8.29 8.17 8.03 7.87 7.69 7.49 7.28 7.05
N (kw) 5.50 7.50 11.00 11.00 11.00 15.00 15.00 15.00

Description:

The LBSR100 is a standard three-lobe roots blower , its structure is very compact and have higher running reliability and long life, the inlet sizes are from 1.5" to 14". The tri-lobe roots blower can run under the pressure of 80Kpa without cooling water, and the biggest capacity can be 260 m3/min. Our company has also developed LBSRH water-cooling series blower for the pressure between 80Kpa and 100Kpa. So the biggest pressure of two-stage can be 200Kpa. LBSREH-series are also developed for the biggest pressure can be -500mmHg.

  1. Wide range for air volume, pressure and vacuum
  2. Stable air flow and less pressure variation
  3. Clean air and without oil dirt and/or particles
  4. Construction simple and easy to maintain
  5. Bearings are all lubricated with oil
  6. Lower energy consumption.
  7. Lower noise
  8. Longer bearing life
  9. Strict management of quality standards
  10. Our three-lobe design controls backflow pressure towards rotor so as to reduce energy consumption.

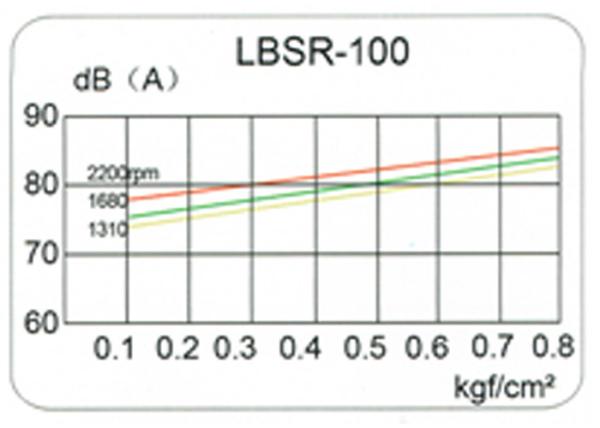

  11. Our new design can effectively reduce noise by approximately 5 dB.
  12. Fewer vibrations transmitted through the lobe increases bearing life by approximately 20%. Conventional blowers generate pressure pulses and vibrations which will diminish power and shorten the life of every bearing, gear and other drive train components.

Applications:

  1. Pneumatic conveying
  2. Waste water treatment plants
  3. Electroplating tanks
  4. Printing
  5. Activated sludge systems.
  6. Vacuum handling systems.
  7. Drying systems.
  8. Absorption transporter (for high standards of hygiene)
  9. Filters.
  10. Hospitals and dentistry

​Stripping gas three lobe roots blower 11kw Port size DN100 100mm

Competitive advantage

All our tri-lobe roots blower are built and checked annually following the strictest adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.
