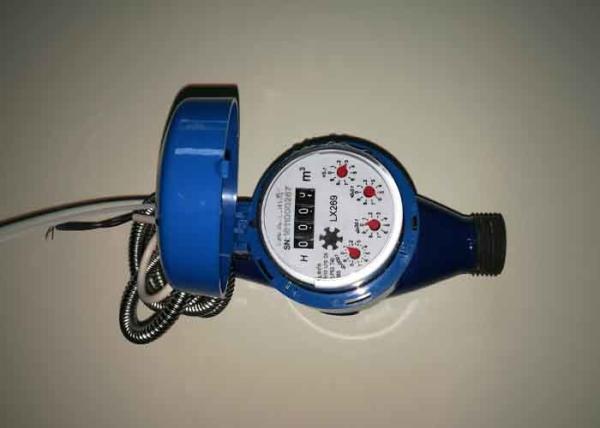

wired Mbus multi jet water meter, for AMR smart metering system Housing: brass or iron DN15-25

Features

• Low consumption microchips, low static power
• Photo-electric reading
• Quickly reading and transimitting within 0.3s
• Protection: IP67
• No need for external battery

General Description

The market demands on the inetegration of water meters, with modern remote reading systems is the ability of the meters to communicate. Our AMR-technology provides modular structured solutions for smart metering systems via suitable interfaces, adapted to individual customer requirements. Our portfolio inclueds bothe wired bus systems and wireless radio solutions, as well as the associated software for activation and for taking readings with the systems.

Applications:

Industrial and commercial water supply, volumetric water flow metering and automatic meter reading for utility, irrigation.

FUNCTIONS

1. Totally sealed design, waterproof.

2. Automatically memorize the wheel code position and no need initiation.

3. Avoiding external strong magnetic attack, high performance of anti-interference.

4. Effectively solve the phenomenon of reversing and hammering.

5. Adopting M-BUS communication port, which with long distance communication.

6. No need power supply for daily work.

7. With remote valve control function that can stop water supply remotely.

The basic water meter Features:

• The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80 / 100 / 125 / 160 as requested
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Water meter operate condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

TECHNICAL PARAMETERS

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team
