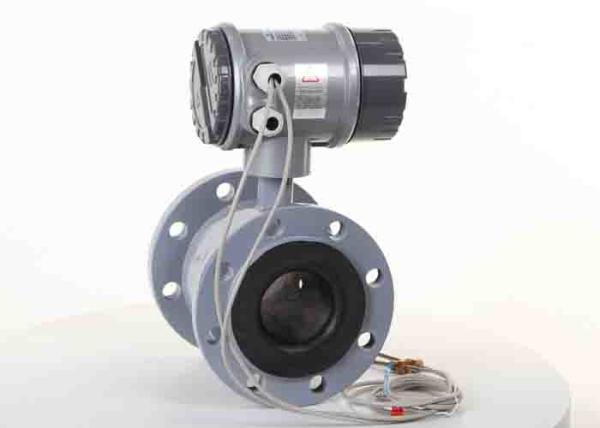

DN25 - DN300 Pipe Diameter Sewer Flow Meter For Metallurgical Mines High Accuracy
DN25 - DN300 Pipe Diameter Sewer Flow Meter For Metallurgical Mines High Accuracy
DN25 - DN300 Pipe Diameter Sewer Flow Meter For Metallurgical Mines High Accuracy
DN25 - DN300 Pipe Diameter Sewer Flow Meter For Metallurgical Mines High Accuracy
Specifications
Brand Name :
Purescience
Model Number :
YE-80-2
Certification :
ISO14001-2000/ISO9001-2008/GB/T28001/MC01010429
Place of Origin :
China
MOQ :
5 sets
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 sets per month
Delivery Time :
3 weeks
Packaging Details :
carton
Product name :
Sewer flow meter
Design :
Remote or compact
Liner option :
PTFE, CR
Type :
static flow meter
Pressure rating :
PN16, PN25, PN40 Mpa
Accuracy :
0.5% R
Pipe Dia. :
DN25-DN300
Connect port :
Flange
Enclosure protection :
IP68
Power supply :
100-240 VAC / 18-36 VDC
Medium :
conductive liquid 5us/cm
Description

Sewer flow meter by electromagnetic flowmeter principle Diameter: 5" - 48", Pressure: PN10/16/40.

Operating Principle

Following Faraday’s law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the following medium is the moving conductor. The voltage induced is proportional to the flow velocity and is supplied to the amplifier by means of two measuring electrodes. The flow volume is calculated by means of the pipe cross section area.

General introduction

Electromagnetic wastewater flowmeter delivers the industry’s widest range of liners, electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, power, oil & gas and metals & mining. The powerful transmitter is easy to use and provides the output signal that meets your needs. With EPD30 you get a versatile, reasonably priced, most accurate flow meter tailored for your applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation

Technical parameters:

  • Accuracy: 0.3%,0.5%,1.0%
  • Flow range: 0.1~10 m/s
  • Current output: 4-20mA/700Ω
  • Pulse output: NPN / 200mA/32Vdc maximum
  • Alarm output: NPN / 50mA/32Vdc maximum
  • Communication Interface: RS-485 Modbus
  • Measurable flow range.

Product Features

  • Measurement is virtually independent of density, viscosity, temperature, pressure and conductivity.
  • Two measuring points inside tube and no moving parts to prevent pressure losses and pipe blockage.
  • Electric conductive liquid and fluids with low solid contents can also be measured.
  • Simple piping design: straight zone of the pipe for installation requests upstream 5D and downstream 2D.
  • With self diagnosis function to check magnetizing signal, empty pipe and contaminated electrode.

Applications

  • MUNICIPAL WATER
  • INDUSTRIAL LIQUID
  • WASTEWATER
  • IRRIGATION
  • CHEMICALS
  • POWER SUPPLY
  • PHARMACEUTICALS
  • FOOD
  • PAPER PLANTS
  • METALLURGICAL MINES

DN25 - DN300 Pipe Diameter Sewer Flow Meter For Metallurgical Mines High Accuracy

Parameters

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency


Measure Accuracy

Pipe Dia (mm) Velocity (m/s) Accuracy
3-20 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout
25-600 0.1-0.3 + 0.25% FS
0.3-1 + 0.5% Readout
1-15 + 0.3% Readout
700-3000 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout













Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities
