Dia DN15 - DN40 Ultrasonic Flow Meters Sensor Body Brass Flow Section
Dia DN15 - DN40 Ultrasonic Flow Meters Sensor Body Brass Flow Section
Dia DN15 - DN40 Ultrasonic Flow Meters Sensor Body Brass Flow Section
Dia DN15 - DN40 Ultrasonic Flow Meters Sensor Body Brass Flow Section
Specifications
Brand Name :
Purescience
Model Number :
001
Certification :
ISO 4064B, GB/T19001
Place of Origin :
China
MOQ :
200 pieces
Price :
USD30 - USD300
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2,800,000 sets per year
Delivery Time :
4-5 weeks
Packaging Details :
unit pack by brown box, pallet
Description :
ultrasonic water meter
Application :
residential water meter
Size :
1/2" - 2"
Pressure :
PN16
Communication :
Nb-IoT / MBus / RS485
Accuracy :
+ / - 2% @ cold water
Protection :
IP68
Standard :
ISO4064 , GBT778 , Q/320700JR05-2003
Function :
Totalizer , flow rate
Description

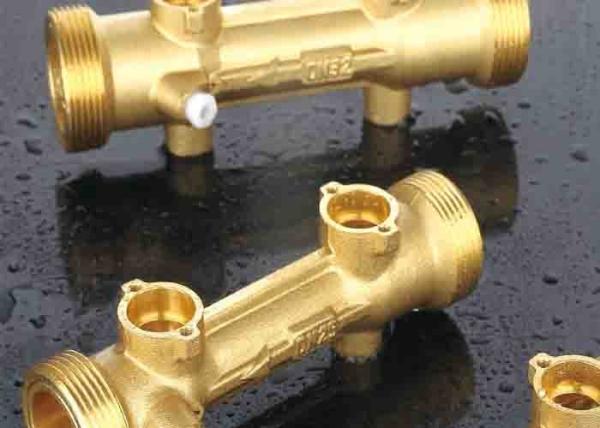

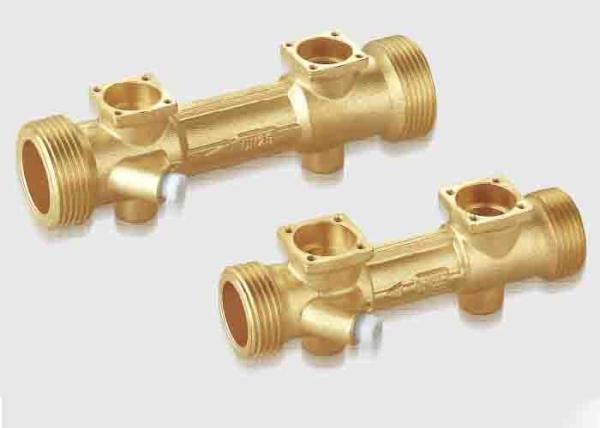

Ultrasonic heat water meter's sensor body, brass flow section, Dia: DN15 - DN40

General Description:

Ultrasonic water meter, as a static water meter, it's with no moving parts to wear or tear. It is completely maintenance-free. The sensor body has a straight-through design with no blockage in the measuring tube. This not only leads to very minimal pressure drop, but also allows the meter to work with both pure water and water with some solids.

Technical Parameter

Diameter Tube length (mm) Thread (inch) Transducer hole size (mm) Core (mm) remarks
DN15 110 G3/4B Φ21x9.2mm (17.2x1.5) - customized available
DN20 130 G1B Φ21x9.2mm 17.2x1.5

Φ14x46mm

 customized available
DN25 160 G1-1/4B Φ21x9.2mm 17.2x1.5 Φ17x60mm customized available
DN32 180 G1-1/2B Φ21x9.2mm 17.2x1.5 Φ22.5x60mm customized available
DN40 200 G2B Φ21x9.2mm 17.2x1.5 Φ28.5x60mm customized available

Process equipment

Dia DN15 - DN40 Ultrasonic Flow Meters Sensor Body Brass Flow Section
