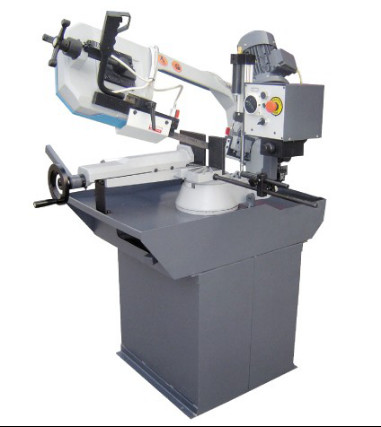

Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Metal cutting band saw 4.7'' European type band saw machine BS-280G
Specifications
Brand Name :
WS
Model Number :
BS-280G
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
USD 1800.00-2000.00/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Set/Sets per Month
Delivery Time :
20 working days
Packaging Details :
Wooden box
Condition :
New
Use :
Metal Cutting
Style :
Horizontal
Voltage :
220V/380V/415V
Power :
750w/1000w
Dimension(L*W*H) :
133x80x105cm
Weight :
254/287kg
Certification :
CE Certificate
Warranty :
1 Year
Blade size :
27x0.9x2450mm
Cutting meterial :
Metal Stainless Steel Carbon Steel Aluminum
Description

Goods Description

1.The band saw features Quick adjusting vise for angular cuts.

2.Coolant pump ensures longer service life of saw blade.

Features

1. The European design band saw features European design,dovetail- type clamp movement and locking mechanism.

2. The European design band saw features double-speed selection.

3. The saw bow can be rotated from 0° to 45°. It has the characteristics of worm gear box transmission structure.

4. The calibration of the jaw is convenient for adjustment and positioning at any angle.

5. The falling speed of saw bow is controlled by hydraulic cylinder.

6. The European design band saw has a sizing device (the machine will automatically stop after sawing the materials).

7. The European design band saw h a power break protection device as(the machine will automatically power off when the rear protective cover is opened).

8. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.

9. It is equipped with a block feeder (with fixed sawing length).

10. Quick adjusting vise for angular cuts-the saw frame swivels, not the material.

Technical parameters

Model BS-280G
Capacity Circular @90° 220mm
Rectangular @90° 250x155mm
Circular @60°(Right) 100mm
Rectangular @60°(Right) 80x95mm
Circular @45°(Left & Right) 160mm
Rectangular @45°(Left & Right) 160x110mm
Blade speed @50Hz 40/80MPM
@60Hz 48/96MPM
Blade size 27X0.9X2450mm
Motor power 0.75/1.1kW
Drive Gear
Packing size

133x80x105cm(body)

67x40x62cm(stand)
N.W/G.W. 380/420kg

Product Details

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Metal cutting band saw 4.7'' European type band saw machine BS-280G

Packing & Shipping

Metal cutting band saw 4.7'' European type band saw machine BS-280G

FAQ

What is your minimum order ?

Answer: 1 Set.

1. Payment Terms

T/T, L/C at sight are acceptable by us.

2. Price Terms

It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.

3. Delivery Time

15-30 Days from our accountant confirm your deposit payment.

4. Shipment Condition

We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.

The balance should be paid up before loading machines.

5. Warranty

1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
