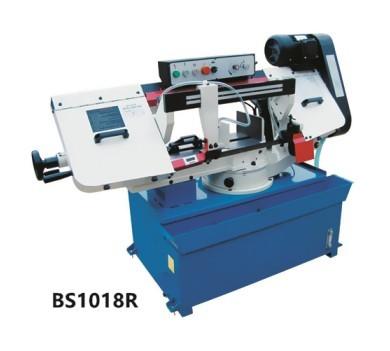

BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
BS-1018R Swansoft 10 Hydraulic Horizontal Metal Cutting Band Saw Machine
Specifications
Brand Name :
WS
Model Number :
BS-1018R
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
USD 2000.00-2300.00/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Wooden box
Condition :
New
Use :
Metal Cutting
Style :
Horizontal
Voltage :
220V/380V/415V
Power :
1500W
Dimension(L*W*H) :
180x77x115cm
Certification :
CE Certificate
Warranty :
1 Year
Blade size :
27x0.9x3215mm
Cutting meterial :
Metal Stainless Steel Carbon Steel Aluminum
Weight :
300/360kg
Description

Specifications

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Features

1. The maximum processing capacity is 10",

2. Belt drive has fourth gear sawing speed;

3. 1018R saw bow can be rotated 0 ~45 degrees cutting ,1018B mouth of tongs can be rotated 0 ~45 degrees cutting;

4. The fast pliers,

5. The fall speed of the saw bow is controlled by the hydraulic cylinder;

6. With stop device (After the machine sawing and cutting will automatically stop );

7. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),

8. The cooling system can prolong the service life of the saw blade,

9. Can improve the accuracy of the work piece; block device (fixed sawing length);

Technical parameters

Model BS-1018R
Capacity Circular @90°

254mm(10'')
Rectangular @90° 160x406mm(6.3"x16")
Circular @60° -
Rectangular @60° -
Circular @45°(Left & Right) 170mm(6.7")
Rectangular @45°(Left & Right) 160x190mm(6.3"x7.5")
Blade speed @50Hz 26,50,73,95MPM
@60Hz 35,60,88,115MPM
Blade size 27x0.9x3215mm
Motor power 1.5kW 2HP (3PH)
Drive V-belt
Packing size

180x77x115mm
N.W/G.W. 300/360kg

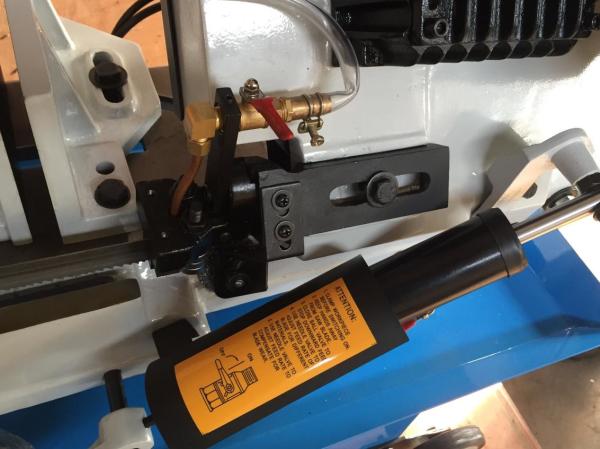

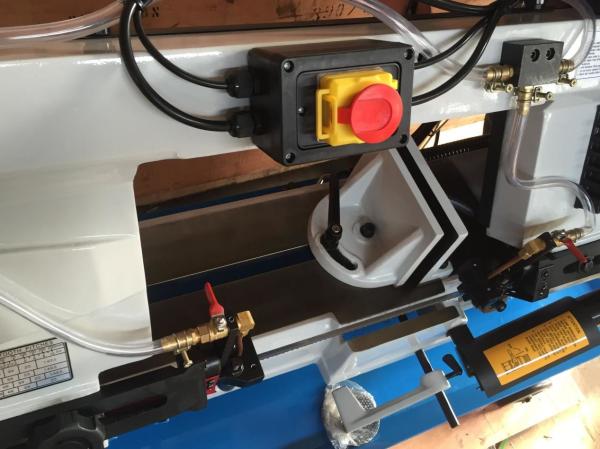

Product Details

BS-1018R Swansoft 10

BS-1018R Swansoft 10

BS-1018R Swansoft 10

BS-1018R Swansoft 10

BS-1018R Swansoft 10

Packing & Shipping

BS-1018R Swansoft 10

FAQ

What is your minimum order ?

Answer: 1 Set.

1. Payment Terms

T/T, L/C at sight are acceptable by us.

2. Price Terms

It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.

3. Delivery Time

15-30 Days from our accountant confirm your deposit payment.

4. Shipment Condition

We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.

The balance should be paid up before loading machines.

5. Warranty

1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
