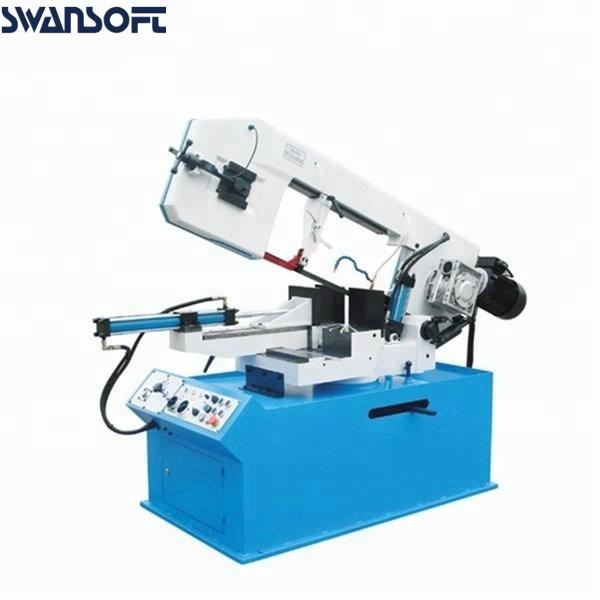

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe
Specifications
Brand Name :
WS
Model Number :
BS-460G
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
USD 6200.00-6800.00/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Wooden box
Condition :
New
Use :
Metal Cutting
Style :
Horizontal
Voltage :
220V/380V/415V
Power :
1500/2200W
Dimension(L*W*H) :
231x107x163cm
Weight :
750/830kg
Certification :
CE Certificate
Warranty :
1 Year
Blade size :
27X0.9X3960mm
Cutting meterial :
Metal Stainless Steel Carbon Steel Aluminum
Description

Goods Description

1.The band saw features Quick adjusting vise for angular cuts.

2.Coolant pump ensures longer service life of saw blade.

Features

1. High-capacity band control by two-speed motor.

2. Vertical rotation on bolt with adjustable tapered bearings without backlash.

3. Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

4. The saw bow can rotate around.

5. Double speed selection.

6. It is characterized by manual/automatic operation mode.

7. Has power break device (the machine will automatically power off when the rear protective cover is opened).

8. The falling speed of saw bow is controlled by hydraulic cylinder.

9. It is equipped with a block feeder (with fixed saw length).

10. Has sizing device (the machine will automatically stop after sawing the materials).

11. The hydraulic system automatically controls the up and down of saw bow and the tightness and looseness of the jaw.

12. The cooling system can prolong the service life of saw blade and improve the precision of the workpiece.

13. Has an optional PLC system.

Technical parameters

Model BS-460G
Capacity Circular @90°

330mm(13”)
Rectangular @90° 460x250mm(18”x9.8”)
Circular @60° 205mm(8”)
Rectangular @60° 205x250mm(8”x9.8”)
Circular @45°(Left & Right) 305mm(12”)
Rectangular @45°(Left & Right) 305x250mm(12’x9.8”)
Blade speed @50Hz 40/80MPM
@60Hz 40/80MPM
Blade size 27X0.9X3960mm
Motor power 1.5/2.2kw
Drive Gear
Packing size

231x107x163cm
N.W/G.W. 750/830kg

Product Details

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe

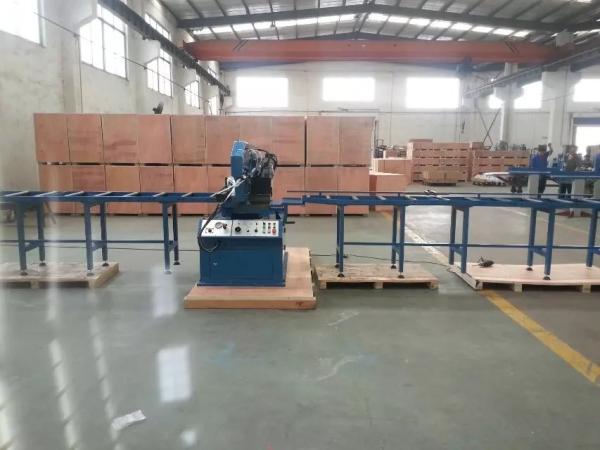

Packing & Shipping

Metal cutting band sawing machine BS-460G export sawing machine horizontal sawing machine stable and safe

FAQ

What is your minimum order ?

Answer: 1 Set.

1. Payment Terms

T/T, L/C at sight are acceptable by us.

2. Price Terms

It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.

3. Delivery Time

15-30 Days from our accountant confirm your deposit payment.

4. Shipment Condition

We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.

The balance should be paid up before loading machines.

5. Warranty

1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
