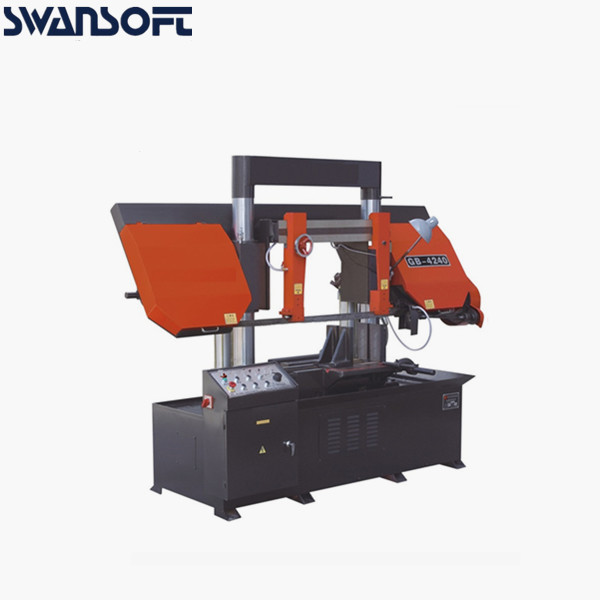

GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw
Specifications
Brand Name :
WS
Model Number :
GB4240
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
USD 1000.00-3000.00/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Wooden box
Condition :
New
Use :
Metal cutting
Style :
Horizontal
Voltage :
220V/380V/415V
Power :
3640w
Dimension(L*W*H) :
2380x1350x1950mm
Certification :
CE Certificate
Warranty :
1 Year
Cutting meterial :
Metal Stainless Steel Carbon Steel Aluminum
Blade size(mm) :
4115x34x1.1mm
Work piece :
Hydraulic
Blade Speed(m/min) :
27/45/69
Work feeding :
Manual
Weight :
1400kg
Description

Specifications

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Features

1) This machine adopts advanced single column structure, saw frame glides on one column as forficiform.


2) It is a high efficiency and energy-saving machine. Comparing with traditional hack sawing machine,the width of saw kerf is less than 50%,and the energy consuming is only 40% now, but the cutting efficiency is increased 4-5 times higher.


3) It uses 50 degree inclined angle between saw frame and worktable, the turning angle of saw blade is very small and extend the lift.


4) The main transmission of machine adopts worm wheel and worm speed- down system.

It is suitable to cut any material of workpiece. Ensure dynamic torque is big and machine noise abatement.


5) The saw blade use ball bearing and horniness alloy ensure the right running position and get the high cutting accuracy.


6) It can clamp the workpiece by mandrel or hydraulic pressure. If it uses vertical clamp device, it can cut a bundle of workpiece.


Note

Specifications is for your reference. Owing to our continuous improvement of the machine, any changes of the machines and parts may be made without obligation on notice / should not be advised separately. Please check with us before order if there are strict requirements for the parameters.


Technical parameters

Model Name
GB4228
GB4235
GB4240
GB4250
Max.cutting
280-280×280m
350-350×350mm
400-400×400mm
500-500×500mm
Saw blade
Size
3505×27×0.9mm
4115×34×1.1mm
5000×41×1.3mm
Speed
27,45,69m/min
Guides
Carbide and bearing blade guides
Cleaning
Power wire brush & flood coolant
Tension
Manual
Motor output
Blade
2.2kw
3kw
4kw
Hydraulic
0.55kw
0.55kw
1.5kw
Coolant
0.0125kw
0.09kw
0.09kw
Work feeding
Manual
Work Vice
Hydraulic
Machine size(mm)
1860×900×1200
1950×1000×1300
2380×1350×1950
2500×1550×2200
Machine Weight(kg)
900
1000
1400
1600


Product Details


GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw

GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw



GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw

GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw


Packing & Shipping

GB4240 Horizontal Dual Column Metal Cutting Band Sawing Machine Manual Bandsaw


FAQ

What is your minimum order ?
Answer: 1 Set.

1. Payment Terms
T/T, L/C at sight are acceptable by us.

2. Price Terms
It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.

3. Delivery Time
15-30 Days from our accountant confirm your deposit payment.

4. Shipment Condition
We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.
The balance should be paid up before loading machines.

5. Warranty
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
