Used SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper Truck
Used SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper Truck
Specifications
Brand Name :
SHACMAN
Model Number :
8X4
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
4-6 units per month
Delivery Time :
5-8 work days
Packaging Details :
nude
Brand :
SHACMAN
Engine(hp) :
380
Engine model :
Weichai WP12.380E32
Color :
Optional
Body length (m) :
10.435
Driving type :
8X4
Vehicle weight（ton） :
14.6
Wheel base (mm) :
1800+3600+1350
Rated load（ton） :
25.93
Total mass（ton） :
30.66
Description


SHACMAN F3000 8X4 Dump Truck

Basic Information
Announcement Model SX3315DT366
Drive type 8X4
Wheelbase 1800+3600+1350mm
engine Weichai WP12.380E32
Gearbox Fast 12JSD160T
Rear axle ratio 4.769
Body length 10.435 m
Body width 2.49 m
Ride height 3.45 m
Front track 1939/1939mm
Rear track 1860/1860mm
Vehicle weight 14.6 tons
Rated load 25.93 tons
Total mass 30.66 tons
Tonnage level Heavy Truck
Approach Angle 28 degrees
Departure angle 20 degrees
Remark Medium-length flat-top cab, clutch (430 diaphragm)
Engine parameters
engine model Weichai WP12.380E32
Engine Brand Weichai
Number of cylinders 6 cylinders
Fuel type diesel fuel
Displacement 11.596L
Emission Standards National Three
Maximum horsepower 380 hp
Maximum output power 280kW
Maximum Torque 1600N·m
Maximum torque speed 1300-1400rpm
Rated speed 2200rpm
Cargo box parameters
Length of cargo box 7.6 m
Cargo box width 2.3 m
Cargo box height 1.1m
Cargo box form Self-unloading
Gearbox parameters
Gearbox Model Fast 12JSD160T
Gearbox brand Fast
Forward gear 12 gears
Reverse gear number 2
tank
Fuel tank capacity 300L
Chassis parameters
Rear Axle Description MAN+Drum
Rear axle allowable load 17700kg
Speed ​​Ratio 4.769
Number of springs 14/13
tire
Tire specifications 12.00R20
Number of tires 12

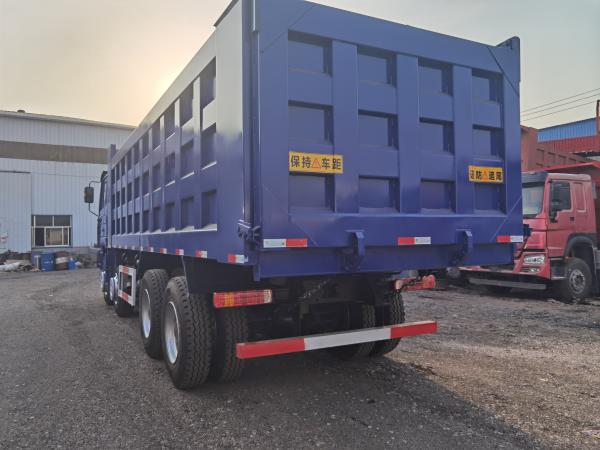

Pictures of Used SHACMAN F3000 8X4 Dump Truck

​

Used SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper TruckUsed SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper TruckUsed SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper TruckUsed SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper TruckUsed SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper Truck


​​


After-sales Service Provided:

Engineers available to service machinery overseas

Our Service:

Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.

More than 20 years experience to dealing with all types of used engineering machinery and shipment service all over the world.

3 Years warranty for engine and pump.


Our Business:

We are supplying various used constrction machines globally for users from different countries. Our machine stocks include excavators, bulldozers, wheel loaders, road rollers, motor graders, dumper trucks, forklifts and cranes,and we alwyas trying to provide machines with excellent quality and good prices.

Also available:

Hitachi: EX100, EX120, EX200, EX210, ZX200, ZX210, ZX230, ZX300, ZX360

Komatsu: PC100, PC120, PC200, PC220, PC300, PC360

Caterpillar: CAT320, CAT 330, CAT 345, CAT 336

volvo: EC210BLC, EC240BLC, EC360BLC, EC460BLC
