Two Dimensional Three Coordinate Phased Array Radar For Low Altitude Surveillance
Two Dimensional Three Coordinate Phased Array Radar For Low Altitude Surveillance
Specifications
Brand Name :
Radartone
Model Number :
LT-P08 + LT-UJ830D
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 set/3 momth
Delivery Time :
3.5 month
Radar System :
Digital Beam Forming System
Operating Frequency Band :
X Band
Scanning Range :
Azimuth：0°-360°，Pitch：±30°
Detection Range（Pd≥90%,Pf≤10-6) :
UAV：7km(σ=0.01m²) ，People：12km(σ=0.7m²)
Blind Range :
240m
Resolution :
Range Resolution：≤10m，Azimuth Resolution：≤3°，Pitch Resolution：≤6°
Description

LT-P08 Digital Multi-Beam Radar + LT-UJ830D Directional UAV Jammer (Optional)

Product Introduction:

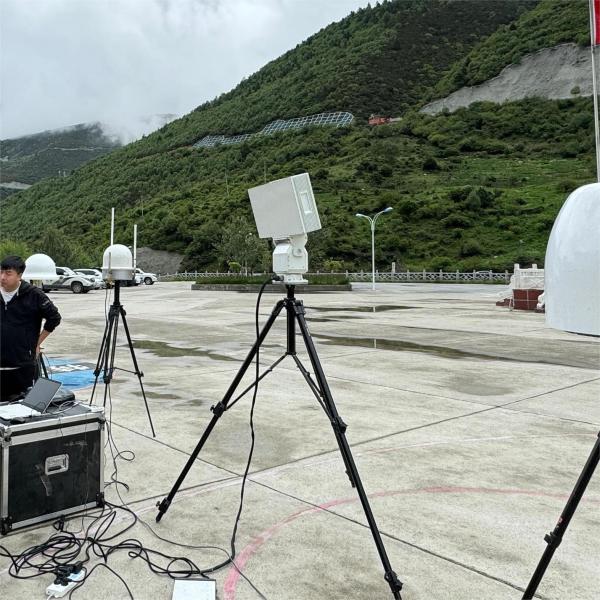

The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitudesurveillance and reconnaissance device operating in the X-band and capable of detectinglow, small and slow targets within a range of 25 kilometers. This radar uses the ActivePhased Array (AESA)system. Digital multi-beam scanning is used in the elevationdimension, while mechanical scanning is used in the azimuth dimension to achieve 360azimuth coverage.The entire machine is of modular and solidstate design to ensureequipment reliability.

The drone jammer mainly consists of a two-dimensional turntable, antenna system, servo control system, portable power supply, tripod, upper computer software, etc. Its transmission frequency band almost covers the current UAV communication frequency band on the market, and can effectively jam targets within the range of the antenna. At the same time, the jammer adopts a high-precision servo transmission and control system, which can automatically track and jam when connected to the UAV surveillance radar network.

Product Features:


1, Strong anti-environment clutter resistance.
2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.
3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

4, The outer shell of the turntable is made of high-strength aluminum alloy, which is sturdy and beautiful.
5, The pitch transmission section uses a worm gear transmission which is self-locking in the event of a power failure.
6, The internal industrial grade (military grade optional) embedded intelligent control system can realize the stable control of the turntable.

​Parameter Name Parameter Value
Radar System Digital Beam Forming System
Operating Frequency Band X Band
Scanning Range Azimuth:0°-360°
Pitch:±30°
Detection Range(Pd=0.8,Pfa=10-6) UAV:7km(σ=0.01m²)
People:12km(σ=0.7m²)
Blind Range 240m
Resolution Range Resolution≤10m
Azimuth Resolution≤3°
Pitch Resolution≤6°
Accuracy Range Accuracy≤10m
Azimuth Accuracy≤0.5°
Pitch Accuracy≤0.6°
Speed Accuracy≤0.5m/s
Target Radial Velocity 0.8m/s-40m/s
Target Tracking Capability ≥100 Batches
Transmit Power ≤300W
Equipment size 685mm*410mm*146mm(Main Unit Size)
Weight 30kg(Main Unit Weight)

Parameter Name Parameter Value
Counter Mode Radio Interference Suppression
Counter Target UAV Image Transmission, Flight Control Links, Navigation Signals
Counter Frequency Band 20-6000MHz
400MHz,800MHz,900MHz,1.2GHz,1.5GHz,2.4GHz,5.2GHz,5.8GHz(Optional)
Counter Type Directional Antenna with PTZ
Counter Range Horizontal 360 °, Pitch ± 60 °
Counter Distance 3-5km(Counter Range Varies by Model)
Counter Corresponding Time 3s
Size 50mm*450mm*750mm
Weight ≤60kg
Power Consumption Interference Switched On:970W
Ingress Protection IP67
