Multi Beam Scanning border surveillance radar With Pitch Adjustment Device
Multi Beam Scanning border surveillance radar With Pitch Adjustment Device
Multi Beam Scanning border surveillance radar With Pitch Adjustment Device
Multi Beam Scanning border surveillance radar With Pitch Adjustment Device
Specifications
Brand Name :
Radartone
Model Number :
LT-P08
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 set/3 momth
Delivery Time :
3.5 month
Radar System :
Digital Beam Forming System
Operating Frequency Band :
X Band
Scanning Range :
Azimuth：0°-360°，Pitch：±30°
Detection Range（Pd≥90%,Pf≤10-6) :
UAV：7km(σ=0.01m²) ，People：12km(σ=0.7m²)
Blind Range :
240m
Resolution :
Range Resolution：≤10m，Azimuth Resolution：≤3°，Pitch Resolution：≤6°
Description

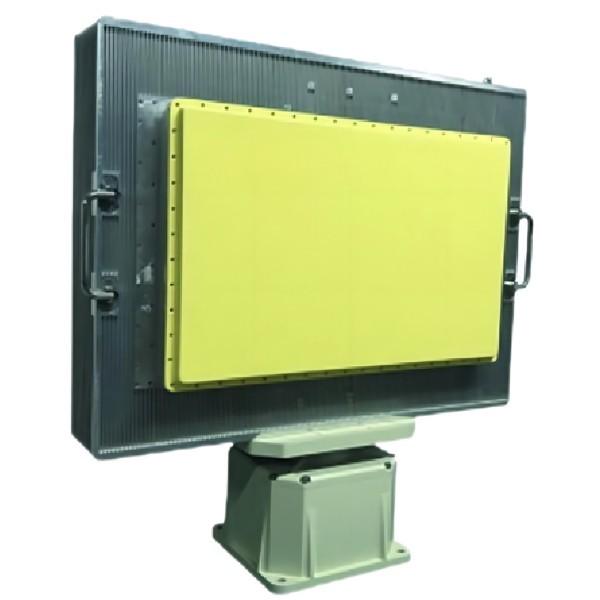

LT-P08 Digital Multi-Beam Radar

Product Introduction:


The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitudesurveillance and reconnaissance device operating in the X-band and capable of detecting low, small and slow targets within a range of 25 kilometers. This radar uses the Active Phased Array (AESA)system. Digital multi-beam scanning is used in the elevation dimension, while mechanical scanning is used in the azimuth dimension to achieve 360azimuth coverage.The entire machine is of modular and solidstate design to ensureequipment reliability.

Product Features:


1, Strong anti-environment clutter resistance.
2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.
3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

​Parameter Name Parameter Value
Radar System Digital Beam Forming System
Operating Frequency Band X Band
Scanning Range Azimuth:0°-360°
Pitch:±30°
Detection Range(Pd=0.8,Pfa=10-6) UAV:7km(σ=0.01m²)
People:12km(σ=0.7m²)
Blind Range 240m
Resolution Range Resolution≤10m
Azimuth Resolution≤3°
Pitch Resolution≤6°
Accuracy Range Accuracy≤10m
Azimuth Accuracy≤0.5°
Pitch Accuracy≤0.6°
Speed Accuracy≤0.5m/s
Target Radial Velocity 0.8m/s-40m/s
Target Tracking Capability ≥100 Batches
Transmit Power ≤300W
Equipment size 685mm*410mm*146mm(Main Unit Size)
Weight 30kg(Main Unit Weight)
