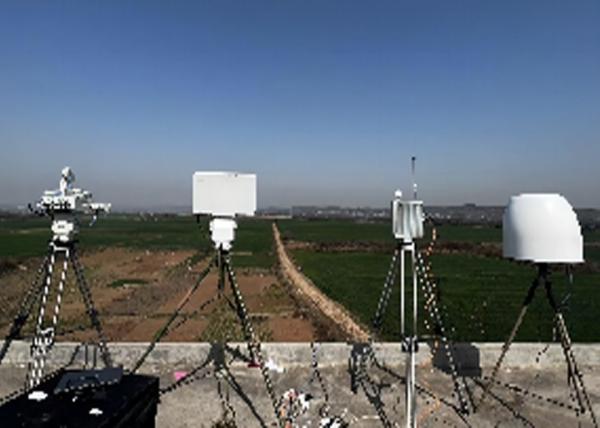

Digital Multi Beam Radar Surveillance System For Low Altitude UAV Helicopter
Digital Multi Beam Radar Surveillance System For Low Altitude UAV Helicopter
Specifications
Brand Name :
Radartone
Model Number :
LT-P08 + LT-RFS30+
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 set/3 momth
Delivery Time :
3.5 month
Radar System :
Digital Beam Forming System
Operating Frequency Band :
X Band
Scanning Range :
Azimuth：0°-360°，Pitch：±30°
Detection Range（Pd≥90%,Pf≤10-6) :
UAV：7km(σ=0.01m²) ，People：12km(σ=0.7m²)
Blind Range :
240m
Resolution :
Range Resolution：≤10m，Azimuth Resolution：≤3°，Pitch Resolution：≤6°
Description

LT-P08 Digital Multi-Beam Radar + LT-RFS30+ UAV Detection and Positioning Equipment (Optional)

Product Introduction:


The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitudesurveillance and reconnaissance device operating in the X-band and capable of detectinglow, small and slow targets within a range of 25 kilometers. This radar uses the ActivePhased Array (AESA)system. Digital multi-beam scanning is used in the elevationdimension, while mechanical scanning is used in the azimuth dimension to achieve 360azimuth coverage.The entire machine is of modular and solidstate design to ensureequipment reliability.

The UAV identification and positioning equipment is mainly used to detect and identify all kinds of UAV remote control and image transmission radio signals, and to measure direction and position. It achieves the tracking and marking of UAV trajectories, facilitates the operator to monitor the UAV situation in the protected area, and at the same time has the capability of reconnaissance and early warning, precise identification, black and white lists, the identification between friend or foe in the UAV precise control technology program, and early warning and alarm.

Product Features:


1, Strong anti-environment clutter resistance.
2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.
3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

4, The system found that the UAV had an effective range of both near and far, with a monitoring distance of 5,000 meters.

5, Direction finding accuracy≤3°.

6, With UAV and operator tracking capabilities to suit a variety of application environments.

7, Supports both stand-alone and networked (intersection positioning) modes of operation, providing excellent scalability.

8, Supports black and white list recognition of drones, distinguishing between friend and foe for precision strikes.

​Parameter Name Parameter Value
Radar System Digital Beam Forming System
Operating Frequency Band X Band
Scanning Range Azimuth:0°-360°
Pitch:±30°
Detection Range(Pd=0.8,Pfa=10-6) UAV:7km(σ=0.01m²)
People:12km(σ=0.7m²)
Blind Range 240m
Resolution Range Resolution≤10m
Azimuth Resolution≤3°
Pitch Resolution≤6°
Accuracy Range Accuracy≤10m
Azimuth Accuracy≤0.5°
Pitch Accuracy≤0.6°
Speed Accuracy≤0.5m/s
Target Radial Velocity 0.8m/s-40m/s
Target Tracking Capability ≥100 Batches
Transmit Power ≤300W
Equipment size 685mm*410mm*146mm(Main Unit Size)
Weight 30kg(Main Unit Weight)

Parameter Name Parameter Value
Detection Frequency Range 30MHz-6000MHz
Focus Bands: 0.4,0.9,1.4,2.4,5.2,5.8GHz
Detection Method Passive Radio Auto-detection, Passive Signal Reception
Detection Distance 3km(Range Varies by Model, UAV Transmit Power >0.1W)
Detection Range Omnidirectional Detection
Number of Target Detections Simultaneous detection of over 20 UAVs
Simultaneous positioning of over 6 UAVs
Accuracy Direction Finding Accuracy≤1.5°
Positioning Accuracy≤10m
Detection Success Rate ≥98%
Detection Response Time ≤3s
Size 215mm*280mm
Weight ≤3kg
Ingress Protection IP67
Usage 4 or more devices are networked for use
